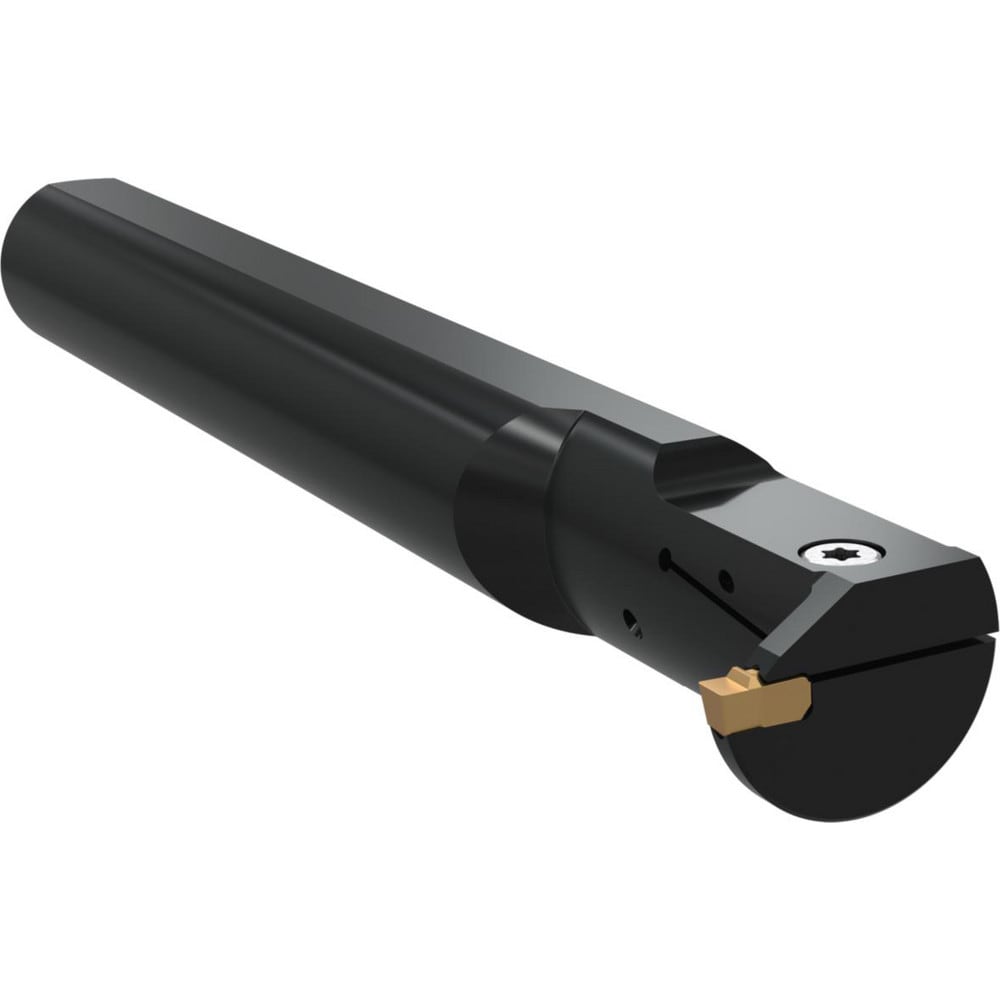

Brand: Widia / Part #: 6948366
Item #: 97889422
Brand: Widia
Model #: 6948366
Product Specifications
| Internal or External | Internal |
| Toolholder Type | Internal Grooving |
| Insert Seat Size | 2 |
| Hand of Holder | Left Hand |
| Cutting Direction | Left Hand |
| Maximum Depth of Cut (mm) | 10.00 |
| Minimum Groove Width (mm) | 2.00 |
| Maximum Groove Width (mm) | 2.00 |
| Toolholder Style | WGCEML |
| Insert Holding Method | Clamp |
| Insert Compatibility | WG0200M02P02 |
| Compatible Insert Size Code | 2 |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Height (mm) | 166.90 |
| Series | WGC |
| Shank Length (mm) | 166.900 |
| Overall Length (mm) | 200.0000 |
| Multi-use Tool | No |
| Cutting Tool Application | Grooving |
| Back of Bar to Cutting Edge (mm) | 29.50 |
| Center to Cutting Edge (mm) | 17.00 |
| Minimum Hole Diameter (mm) | 32.00 |
| Head Length (mm) | 50.00 |
| Primary Workpiece Material | Universal |
| Vibration Dampening | No |
| Coolant Hole Diameter (mm) | 6.40 |
| Coolant Hole Thread Size | 1/4-18 NPT |
| Mount Type | Shank |
| Manufacturers Catalog Number | A25RWGCEML0210M |
| Toolholder Material | Steel |
| Insert Hand | Neutral |
| Complete Insert Compatibility | WG0200M02P02 |
| Coolant Through | Yes |
| Minimum Bore Diameter (mm) | 32.000 |
| Maximum Bore Depth (mm) | 50.00 |
