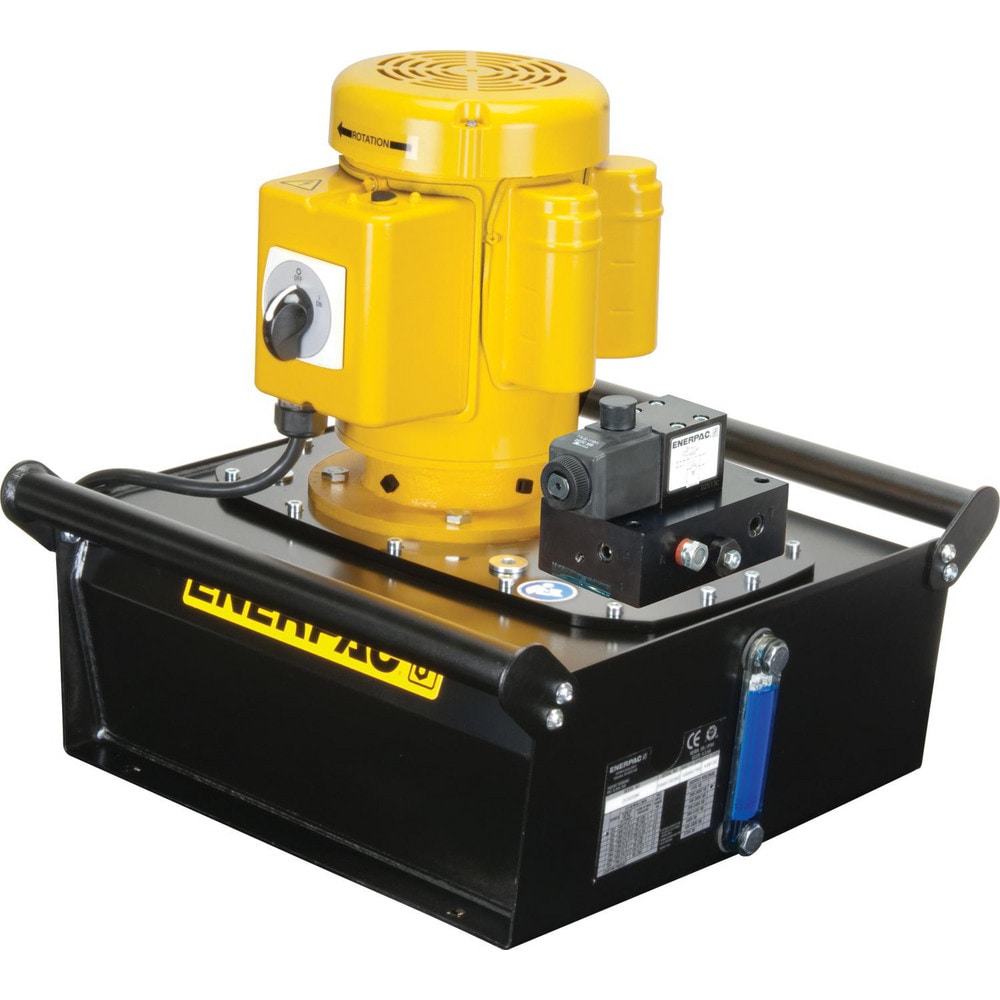

Power Hydraulic Pumps & Jacks; Type: Electric Hydraulic Pump; 1st Stage Pressure Rating: 10000; 2nd Stage Pressure Rating: 10000; Pressure Rating (psi): 10000; Oil Capacity: 1 gal; Actuation: Single Acting; Cylinder Operating Function: Retract, Advance
Item #: 19834134
Brand: Enerpac
Model #: ZE3104DB
Product Specifications
| Type | Electric Hydraulic Pump |
| 1st Stage Pressure Rating | 10000 |
| 2nd Stage Pressure Rating | 10000 |
| Pressure Rating (psi) | 10000 |
| Oil Capacity | 1 gal |
| Actuation | Single Acting |
| Cylinder Operating Function | Retract; Advance |
| Valve Type | Three-Way; Two-Position |
| Adjustable Relief Valve | Yes |
| Includes | Electric Box; LCD |
| Overall Length | 25.75 |
| Overall Width | 13 |
| Overall Height | 20.2 in |
| Usable Oil Capacity | 1 gal |
| Additional Information | Operation Type: Solenoid Dump Valve; Series: ZE; Motor Speed: 1750 rpm; Sound Level: 75 dBA; Motor Hertz: 50/60 Hz; Motor Phases: 1 ph; Duty Cycle: Extended; Thread: 3/4 in NPTF |
| Resovoir Capacity (Cu.In.) | 277 |
| Used With Cylinders | Single Acting |
| Horse Power | 1 hp |
| UNSPSC Code | 27121800 |
