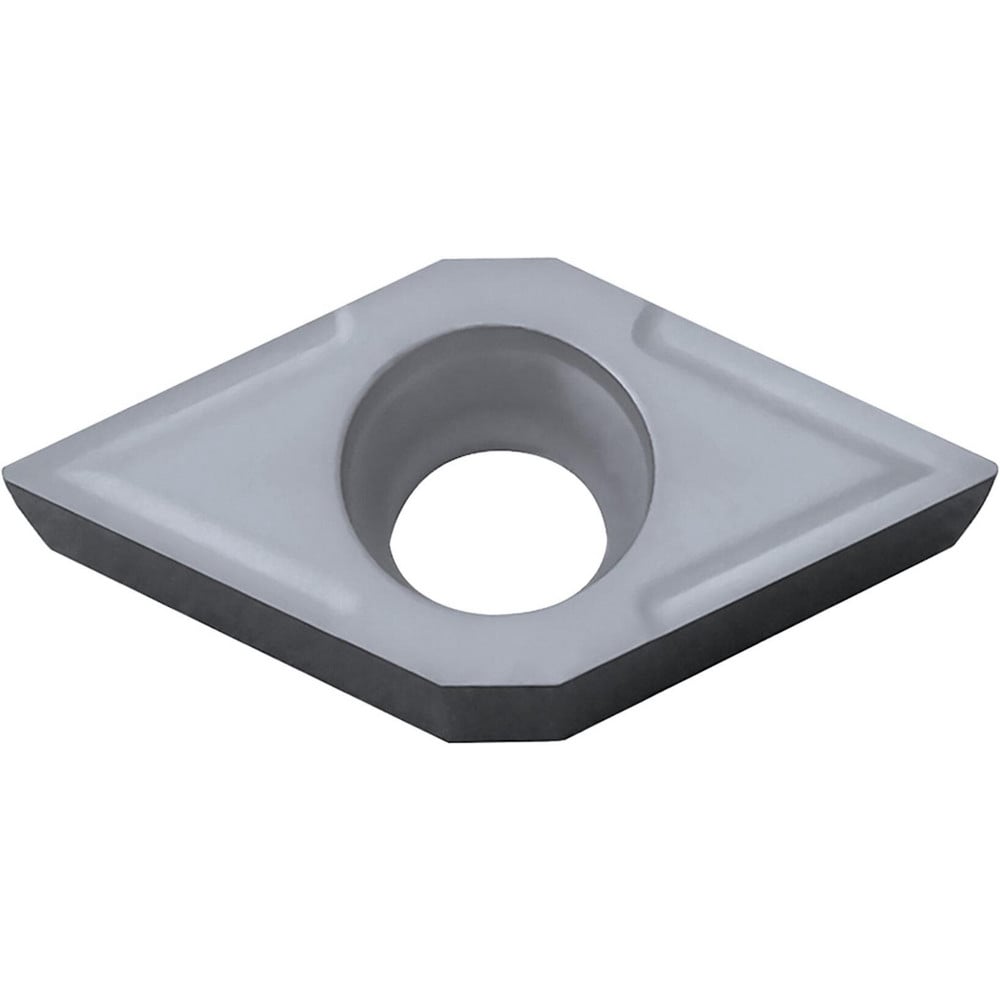

Turning Insert: DCGT11T302 TN610, Cermet
Item #: 28468841
Brand: Kyocera
Model #: TSS03211
Product Specifications
| ANSI Insert Code | DCGT32505 |
| ISO Insert Code | DCGT11T302 |
| Relief Angle | 7 |
| Insert Style | DCGT |
| Corner Radius (Inch) | 1/128 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Included Angle | 55 |
| Manufacturer Grade | TN610 |
| Coating/Finish | TiCN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 5/32 |
| Insert Thickness (Decimal Inch) | 0.1563 |
| Series | ISOI |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Material | Cermet |
| Insert Shape | D - Diamond (Rhombic) 55-Deg |
| Grade Characteristics | Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | D |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Maximum Depth of Cut (Decimal Inch) | 0.3047 |
| Insert Holding Method | Screw |
| Width (Inch) | 3/8 |
| Clearance Code | C |
| Tolerance Code | G |
| Coating Process | Uncoated |
| Length Range (Decimal Inch) | 0.7000 - 10.0000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.9140 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P; M |
| Iso Code | DCGT11T302 |
| Manufacturers Catalog Number | TSS03211 |
| Material Grade | P01; P10 |
| Coating Classification | Uncoated |
| Industry Standard Number | DCGT32505TN610 |
| Width (Decimal Inch - 4 Decimals) | 0.3750 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | External Turning; Back Boring; Copying; Sub-Spindle |
| ANSI Size Code | 32505 |
| ISO Size Code | 11T302 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 32505 |
