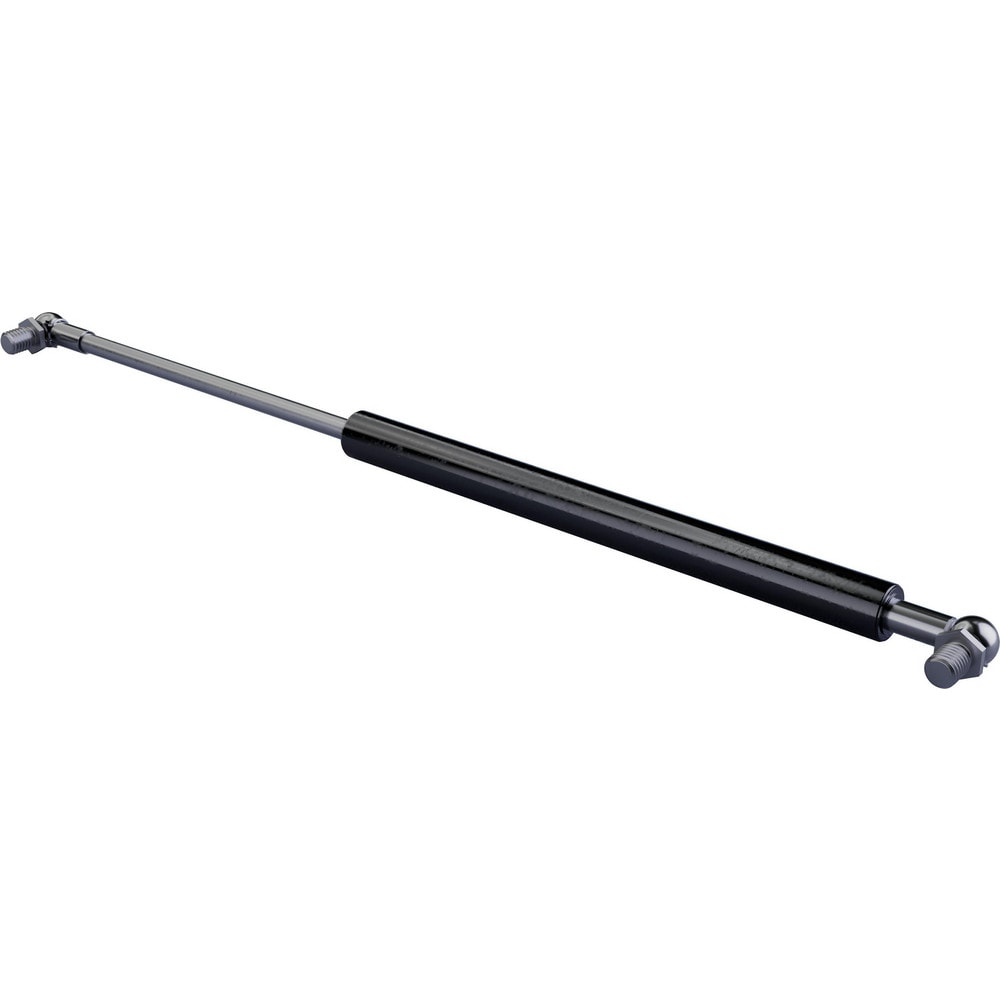

Extended Life Gas Spring: 35.00 lb Capacity
Item #: 02399616
Brand: Industrial Gas Springs
Model #: 15G010421JJ0156
Product Specifications
| Fitting Type | Ball Joint |
| Type | Extended Life Gas Spring |
| Material | Carbon Steel |
| Rod Diameter (mm) | 10.00 |
| Tube Diameter (mm) | 23.00 |
| End Fitting Connection | Ball Joint |
| Extended Length (Decimal Inch) | 17.0800 |
| Compressed Length (Decimal Inch) | 11.11 |
| Extension Force | 35 |
| Stroke Length (Decimal Inch) | 6.0200 |
| Force Mechanism | Gas |
| Working Direction | Extension |
| Capacity (Lb.) | 35.00 |
| Special Item Information | Zinc-Plated Carbon Steel Ball Joint |
| Finish Coating | Coated |
| UNSPSC Code | 31162800 |
