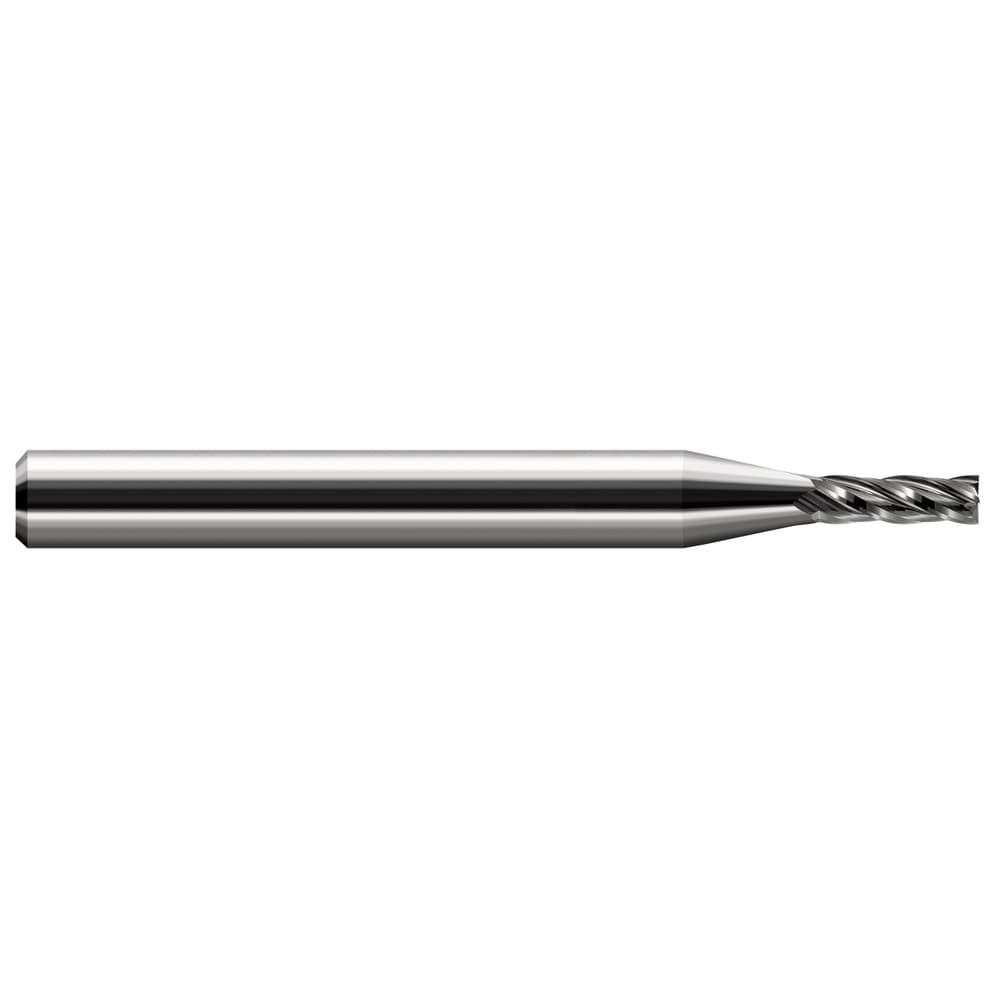

Square End Mill: 4 Flute, Solid Carbide
Item #: 86970050
Brand: Harvey Tool
Model #: 743476
Product Specifications
| Mill Diameter (mm) | 12.00 |
| Mill Diameter (Decimal Inch) | 0.4724 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 1.4173 |
| Length of Cut (mm) | 36.00 |
| Shank Diameter (mm) | 12.00 |
| Overall Length (mm) | 75.00 |
| Single Or Double End | Single |
| Coating/Finish Family | Bright/Uncoated |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 30 |
| Primary Workpiece Material | Aluminum & Non-Ferrous; Stainless Steel; Cast Iron; CFRP Materials; Steel |
| Primary Workpiece Material Code | P; C; K; M; N |
| Coating/Finish | Bright/Uncoated |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Shank Type | Straight |
| Material Grade | Solid Carbide |
| Series | Miniature End Mills - Square - Stub & Standard - Metric |
| System Of Measurement | Metric |
| UNSPSC Code | 27112803 |
| Country of Origin | UNITED STATES |
