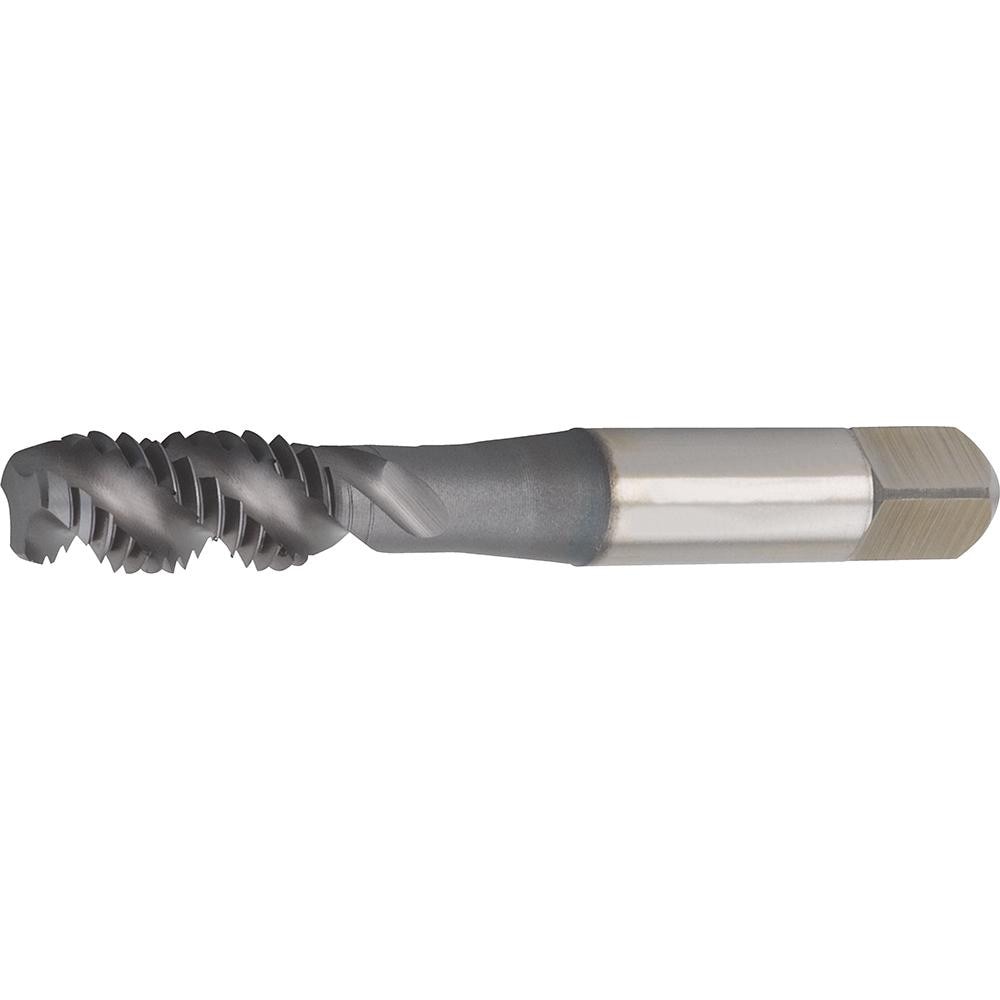

Brand: Widia / Part #: 5887091
Item #: 94434347
Brand: Widia
Model #: 5887091
Product Specifications
| Thread Size (mm) | M6x1 |
| Chamfer | Modified Bottoming |
| Thread Limit | D5 |
| Class Of Fit | 6H |
| Number Of Flutes | 3 |
| Material | High Speed Steel |
| Threads per Inch | 25 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Coating/Finish | TiCN |
| Thread Depth (mm) | 25.50 |
| Coolant Through | No |
| Thread Length (mm) | 16.00 |
| Overall Length (mm) | 63.5000 |
| Thread Pitch (mm) | 1.00 |
| Thread Standard | Metric |
| Material Grade | WP42EG |
| Shank Diameter (mm) | 6.4800 |
| Square Length (mm) | 8.00 |
| Square Size (mm) | 4.80 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Series | VTSFT-TC |
