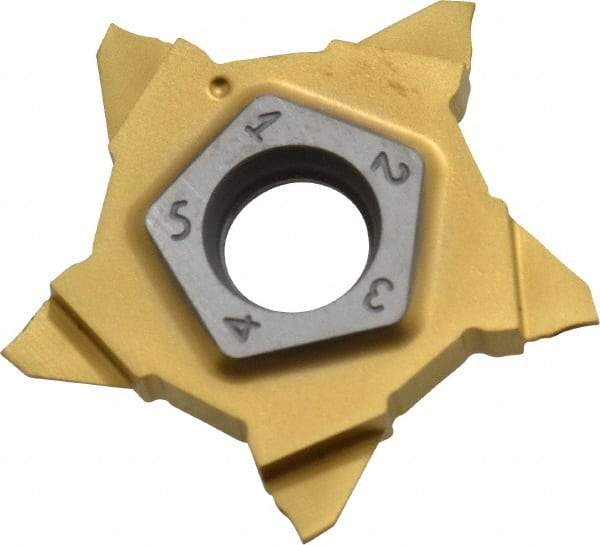

Iscar - 24N050J004PENTA J Grade IC1008, 0.5mm Cutting Width Carbide Grooving Insert - 2.5mm Max Depth of Cut, Neutral, 0.04mm Corner Radius, TiAlN/TiN Finish
Item #: 05994629
Brand: Iscar
Model #: 6003088
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | PENTA |
| Insert Size | 24N050J004 |
| Material | Carbide |
| Cutting Width (mm) | 0.50 |
| Cutting Width (Decimal Inch) | 0.0197 |
| Maximum Depth of Cut (mm) | 2.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0984 |
| Material Grade | C1/C2/C3/C5/C6 |
| Manufacturer's Grade | IC1008 |
| Coating | TiAlN/TiN |
| Insert Hand | Neutral |
| Lead Angle | 0 |
| Chipbreaker | J |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.04 |
| Corner Radius (Decimal Inch) | 0.0016 |
| Coating Process | PVD |
| Series | PENTA |
| Manufacturers Catalog Number | PENTA 24N050J004 |
