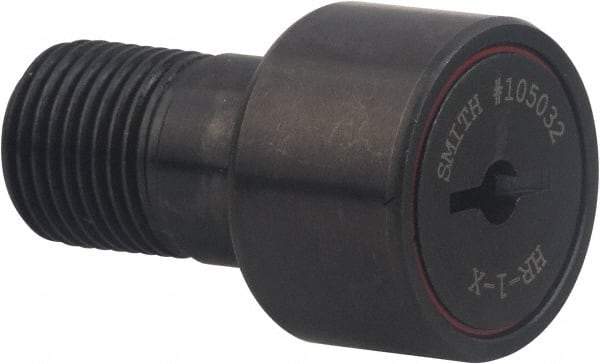

Accurate Bushing - 1-3/4" Roller Diam x 1" Width, 1" Stud Diam x 1-3/4" Length, Heavy Stud Cam Follower - Carbon Steel, 7/8" Thread Length, 1-14 Thread, 3" OAL, 7,600 Lb Dynamic Cap, 2 N Static Cap
Item #: 05960349
Brand: Accurate Bushing
Model #: HR-1-3/4
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Heavy Stud Cam Follower |
| Roller Diameter (Decimal Inch) | 1.7500 |
| Roller Diameter (Inch) | 1-3/4 |
| Roller Width (Decimal Inch) | 1.0000 |
| Stud Diameter (Decimal Inch) | 1.0000 |
| Dynamic Load Capacity (Lb.) | 7600 |
| Static Load Capacity | 2 |
| Length (Decimal Inch) | 3.000 |
| Thread Size | 1-14 |
| Material | Carbon Steel |
| Flange Diameter (Inch) | 1-3/4 |
| Stud Length (Inch) | 1-3/4 |
| Thread Length (Inch) | 7/8 |
