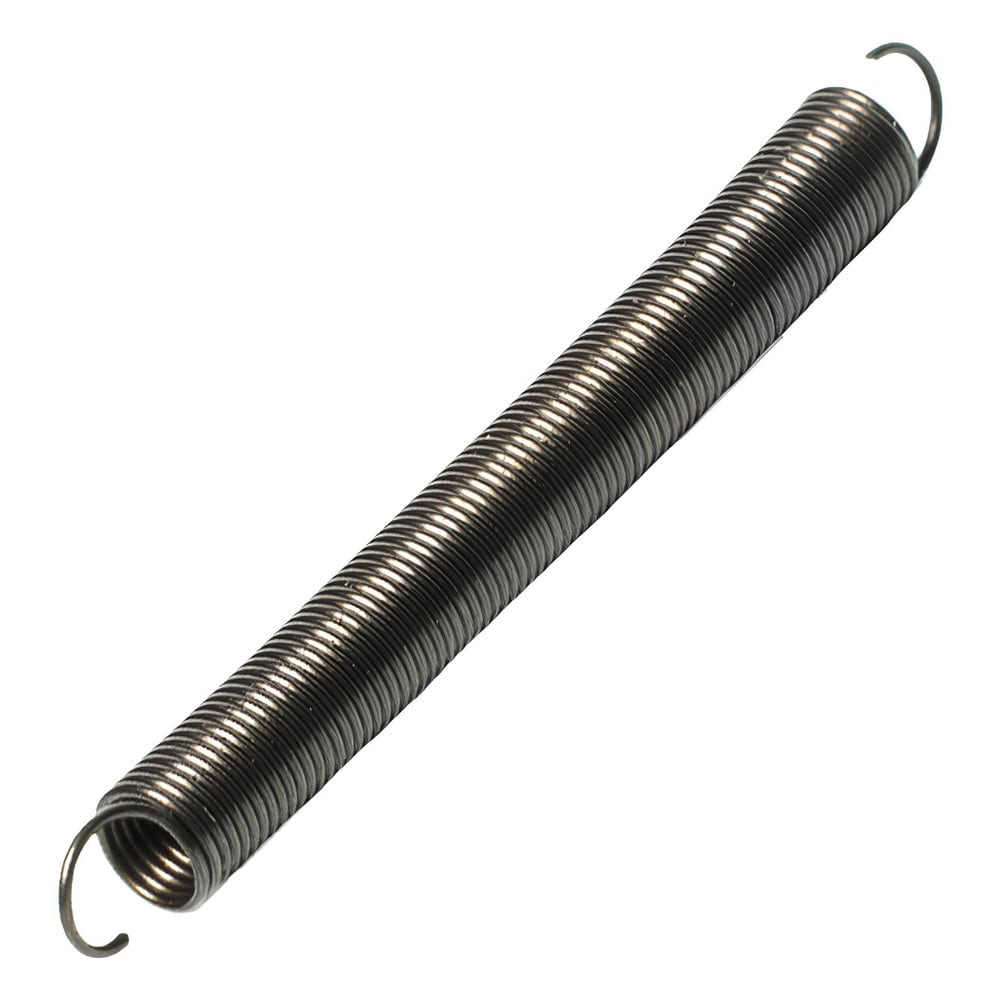

Extension Springs; End Type: Hook; Outside Diameter (mm): 28.0000; Spring Rate: 2.3000; Material: Music Wire; Overall Length (Decimal Inch): 7.6360
Item #: 03238201
Brand: Associated Spring Raymond
Model #: MHM2802500189M
Product Specifications
| End Type | Hook |
| Outside Diameter (mm) | 28.0000 |
| Spring Rate | 2.3000 |
| Material | Music Wire |
| Overall Length (Decimal Inch) | 7.6360 |
| Initial Tension (N) | 19.3 |
| Maximum Extended Length (mm) | 522.00 |
| Free Length (mm) | 189.000 |
| Inside Hook Length (Fractional Inch) | 7-11/32 |
| Standards | JIS G3522 SWP - A/B; EN 10270-1; ASTM A228 |
| Finish/Coating | Dry to Touch Oil |
| Wire Size (mm) | 2.50 |
| UNSPSC Code | 31161907 |
