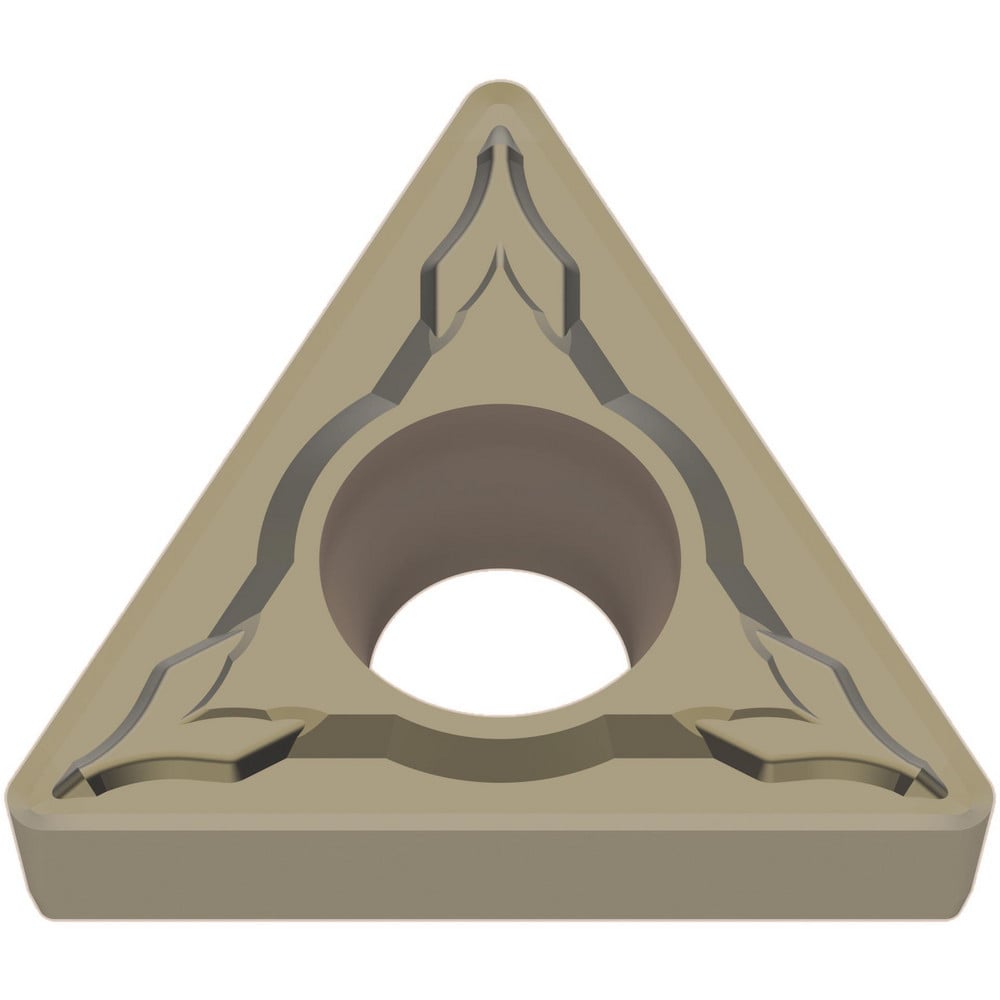

Turning Insert: TCMT1.81.52LM MC7025, Carbide
Item #: 04018628
Brand: Mitsubishi
Model #: 659251
Product Specifications
| ANSI Insert Code | TCMT1.81.52 |
| ISO Insert Code | TCMT090208 |
| Relief Angle | 7 |
| Insert Style | TCMT |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0312 |
| Included Angle | 60 |
| Manufacturer Grade | MC7025 |
| Coating/Finish | CVD |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness | 2.38 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Inscribed Circle (Decimal Inch) | 0.2188 |
| Inscribed Circle (Inch) | 7/32 |
| Inscribed Circle (mm) | 5.56 |
| Insert Material | Carbide |
| Insert Shape | T - Triangle |
| Chip Breaker Operation | Light Machining; Finishing |
| Grade Characteristics | Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 3 |
| Insert Shape Code | T |
| Clearance Code | C |
| Tolerance Code | M |
| Primary Workpiece Material Code | M |
| Chip Breaker | LM |
| ANSI Size Code | 1.81.52 |
| ISO Size Code | 090208 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 1.8 |
