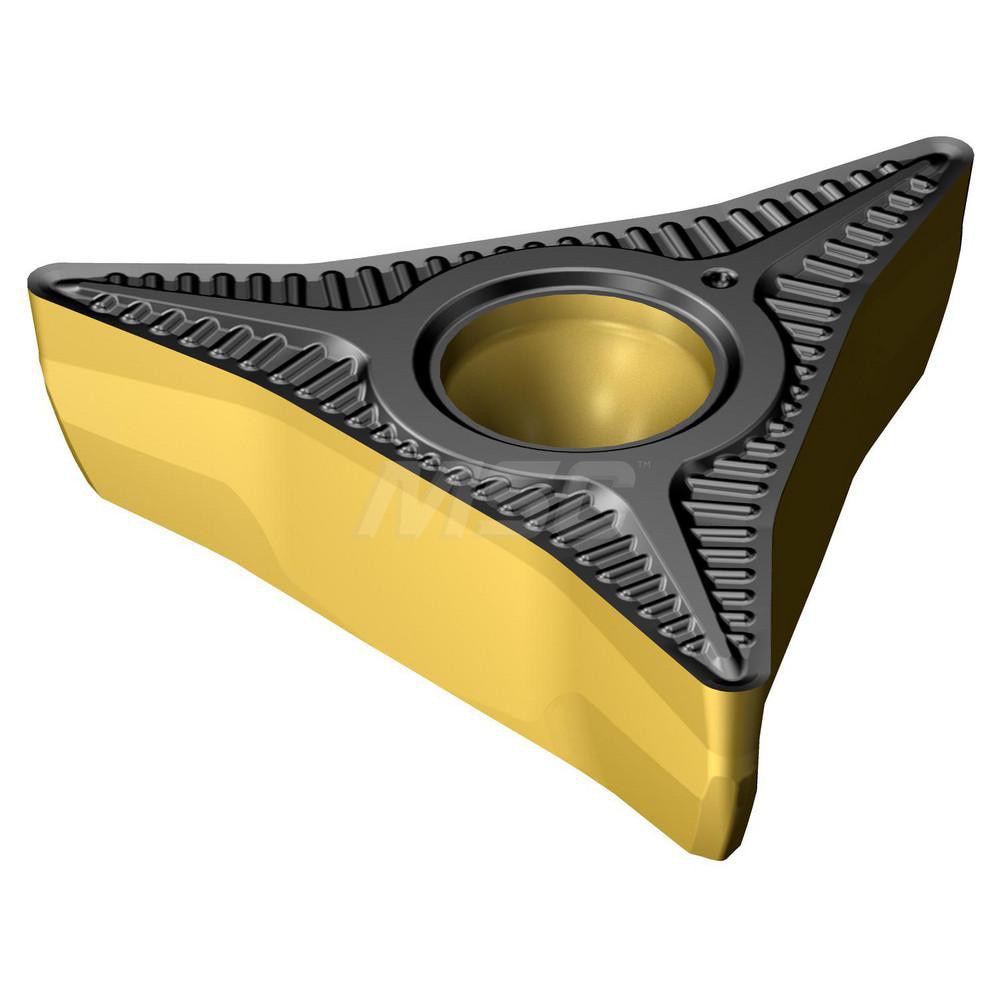

Turning Insert: CP-A1108-L5 4425, Carbide
Item #: 19104371
Brand: Sandvik Coromant
Model #: 7860966
Product Specifications
| ANSI Insert Code | CPA |
| ISO Insert Code | CPA1108 |
| Relief Angle | 6 |
| Insert Style | CPA |
| Corner Radius (mm) | 0.79 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer Grade | 4425 |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness | 6.00 |
| Insert Thickness (Decimal Inch) | 0.2362 |
| Series | CoroTurn Prime |
| Inscribed Circle (Decimal Inch) | 0.1457 |
| Inscribed Circle (mm) | 11.00 |
| Insert Material | Carbide |
| Insert Shape | Non-ISO Specialty Shapes |
| Grade Characteristics | Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 3 |
| Insert Shape Code | A |
| Hole Diameter (Decimal Inch) | 0.1457 |
| Insert Holding Method | Screw; Clamp |
| Coating Process | CVD |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Iso Code | CP-A1108-L5 4425 |
| Manufacturers Catalog Number | CP-A1108-L5 4425 |
| Chip Breaker | L5 |
| ISO Size Code | 1108 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 11 |
