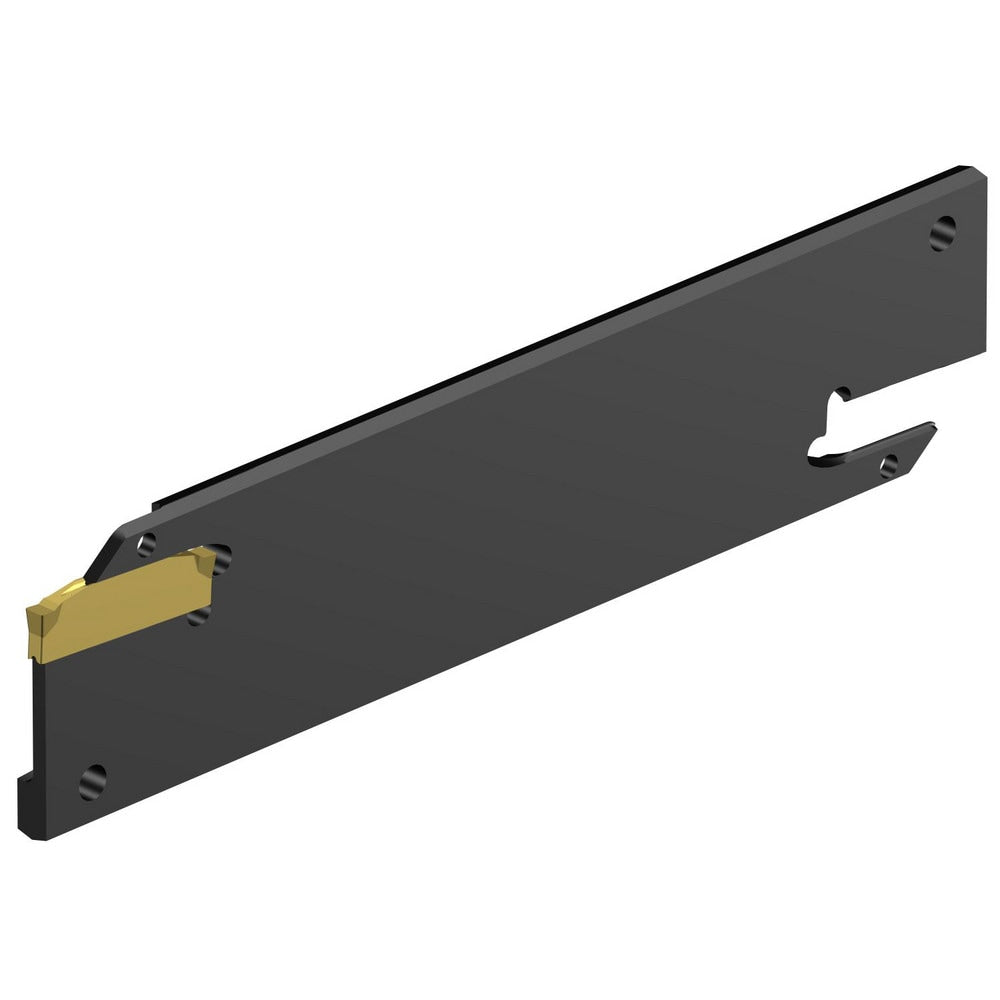

Indexable Cut-Off Blades; End Type: Double; Cutting Direction: Right Hand; Hand: Right Hand; Blade Height (mm): 25.90; Blade Height (Decimal Inch): 1.0197; Blade Width (Decimal Inch): 0.0689; Blade Width (mm): 1.75
Item #: 05899372
Brand: Sandvik Coromant
Model #: 8446703
Product Specifications
| End Type | Double |
| Cutting Direction | Right Hand |
| Hand | Right Hand |
| Blade Height (mm) | 25.90 |
| Blade Height (Decimal Inch) | 1.0197 |
| Blade Width (Decimal Inch) | 0.0689 |
| Blade Width (mm) | 1.75 |
| Blade Overall Length (Decimal Inch) | 4.3307 |
| Blade Overall Length (mm) | 110.00 |
| Blade Style | C2R-BN..R..DC2 |
| Compatible Insert Style | CoroCut 2 -size E (C2I-E2-0200-) |
| Compatible Insert Size Code | E |
| Tool Material | Steel |
| Insert Holding Method | Clamp |
| Series | CoroCut 2 |
| Insert Style | C2I |
| Primary Workpiece Material | Stainless Steel; Steel |
| Primary Workpiece Material Code | P; M |
| Insert Seat Size | 2 |
| Maximum Depth of Cut (Decimal Inch) | 0.5906 |
| Maximum Depth of Cut (mm) | 15.00 |
| Maximum Insert Width (mm) | 2.30 |
| Manufacturers Catalog Number | C2R-BN21-RE15DC2 |
| Insert Type | Cut-Off |
| Insert Width | 0.079 |
| UNSPSC Code | 27112809 |
