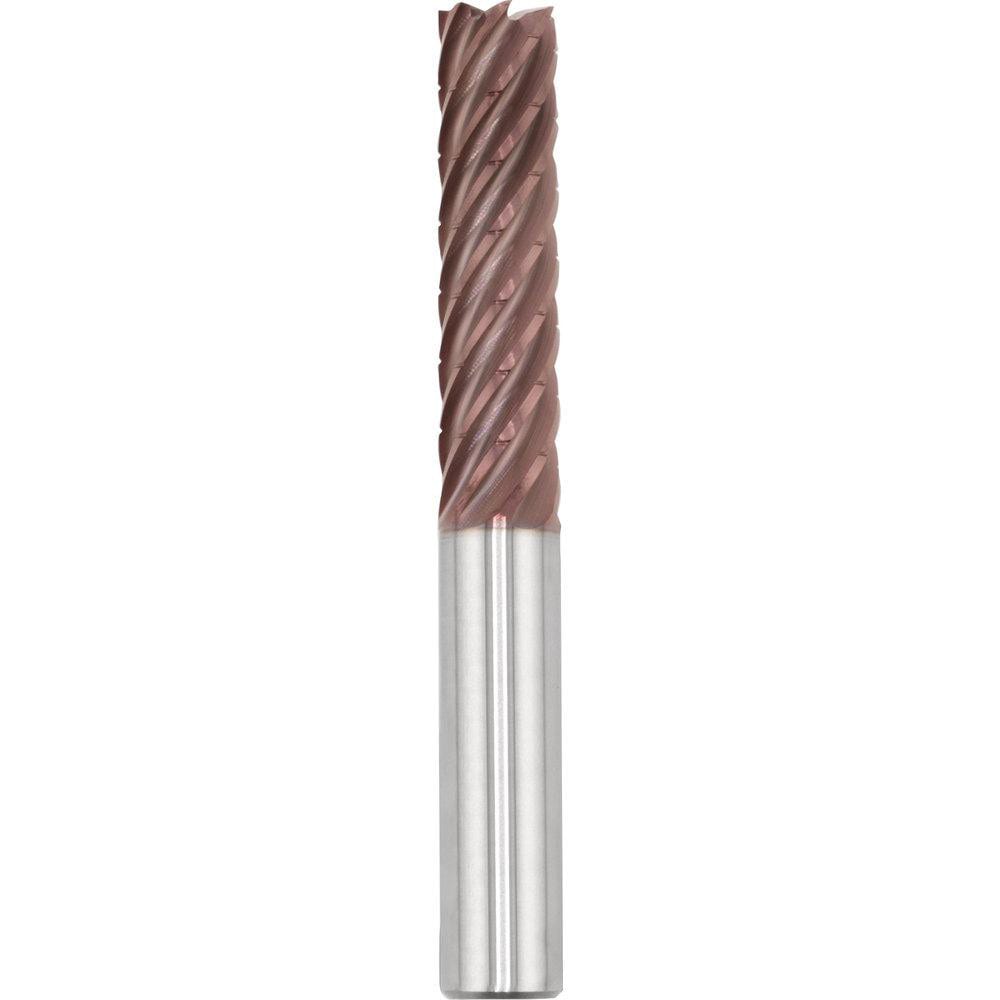

Square End Mill: 7 Flute, Solid Carbide
Item #: 86449279
Brand: SGS
Model #: 77495
Product Specifications
| Mill Diameter (mm) | 25.40 |
| Mill Diameter (Decimal Inch) | 1.0000 |
| Mill Diameter (Inch) | 1 |
| Number Of Flutes | 7 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 4.0000 |
| Length of Cut (Inch) | 4 |
| Length of Cut (mm) | 101.60 |
| Shank Diameter (mm) | 25.40 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Overall Length (mm) | 177.80 |
| Overall Length (Decimal Inch) | 7.0000 |
| Overall Length (Inch) | 7 |
| Single Or Double End | Single |
| Coating/Finish Family | Ti-NAMITE-M |
| Centercutting | No |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 37 |
| Primary Workpiece Material | High-Temp Alloy; Steel |
| Primary Workpiece Material Code | P; S |
| Secondary Workpiece Material | Hardened Materials |
| Secondary Workpiece Material Code | H |
| Coating/Finish | Ti-NAMITE-M |
| Variable Helix | No |
| Variable Index | Yes |
| Chipbreaker | Yes |
| Flute Type | Spiral |
| Shank Type | Straight |
| Material Grade | Micrograin |
| Length Type | Extra Long |
| Mill Diameter Tolerance | +0.0000/-0.0020" |
| Shank Diameter Tolerance | +0.00000/-0.00051" |
| Series | 77 |
| System Of Measurement | Fractional Inch |
| UNSPSC Code | 27112803 |
| Country of Origin | UNITED STATES |
