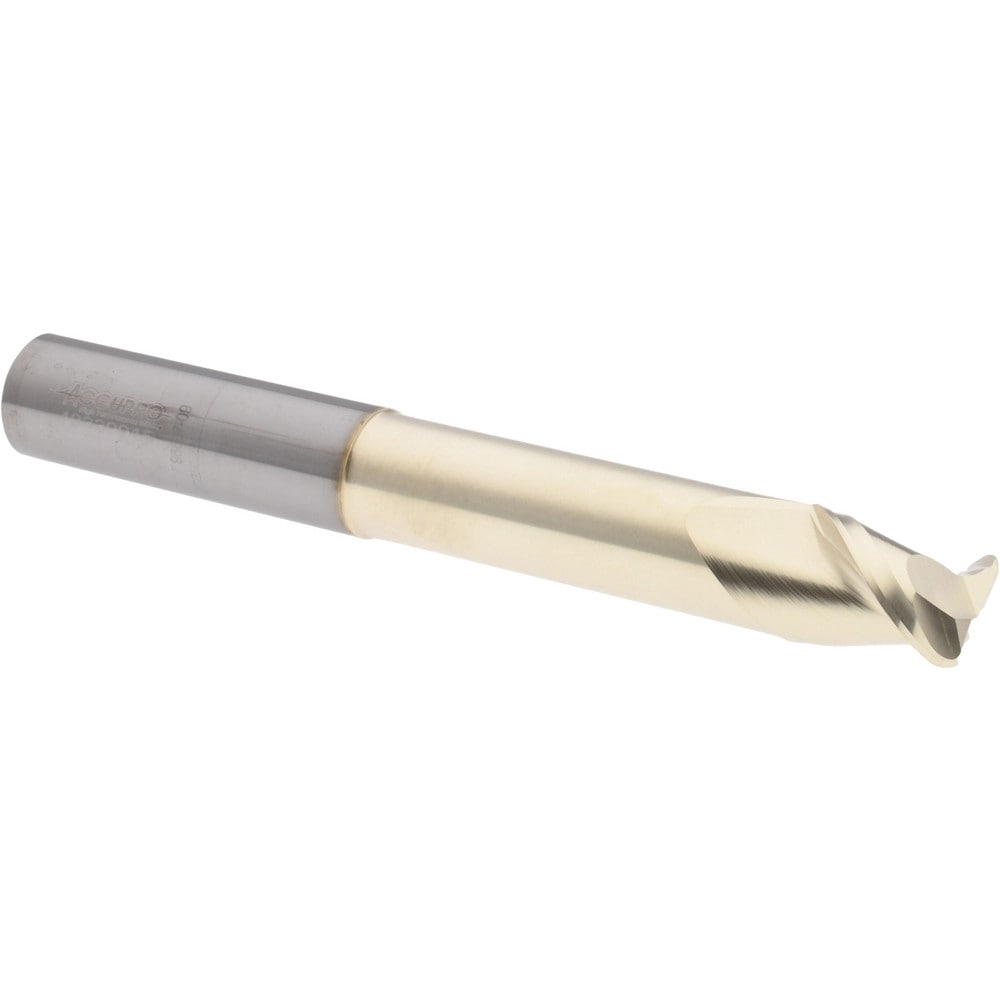

Corner Radius End Mill: 1/2" Dia, 5/8" LOC, 45 deg Helix, Corner Radius End, Centercutting
Item #: 48339915
Brand: Accupro
Model #: 313972
Product Specifications
| Mill Diameter (Inch) | 1/2 |
| Mill Diameter (Decimal Inch) | 0.5000 |
| Number Of Flutes | 2 |
| Length of Cut (Inch) | 5/8 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | ZrN |
| Overall Length (Inch) | 4 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0900 |
| Variable Helix | No |
| Cutting Direction | Right Hand |
| Overall Length (Decimal Inch) | 4.0000 |
| End Type | Corner Radius |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.6250 |
| Flute Type | Spiral |
| Extended Reach | Yes |
| Shank Diameter (Inch) | 1/2 |
| Neck Diameter (Decimal Inch) | 0.4750 |
| Reach Length (Decimal Inch) | 2.3750 |
| Reach Length (Inch) | 2-3/8 |
| Corner Radius Tolerance | +0.00200 to -0.00200 in |
| Mill Diameter Tolerance | +0.000000/-0.003000 in |
| Shank Diameter Tolerance | -0.0001 / -0.0004 in |
| UNSPSC Code | 27112803 |
| Material Grade | Micrograin |
