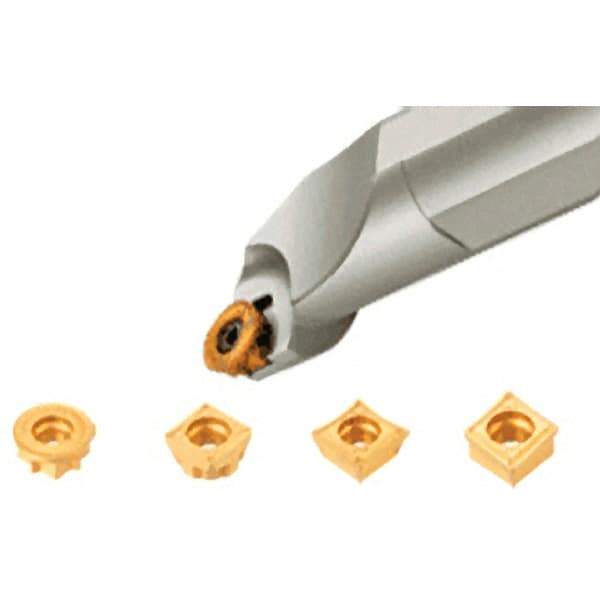

Iscar - 32mm Min Bore Diam, 250mm OAL, 25mm Shank Diam, S-SUXC-CM Indexable Boring Bar - 55mm Max Bore Depth, C/QC95MT 1005.., RC90MT 1205, SC45MT 1005.. Insert, Screw Holding Method
Item #: 05809876
Brand: Iscar
Model #: 3601781
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | S-SUXC-CM |
| Series | ChamTurn |
| Minimum Bore Diameter (mm) | 32.00 |
| Minimum Bore Diameter (Decimal Inch) | 1.2598 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 55.00 |
| Maximum Bore Depth (Decimal Inch) | 2.1654 |
| Overall Length (mm) | 250.00 |
| Overall Length (Decimal Inch) | 9.8425 |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Insert Compatibility | C/QC95MT 1005..; RC90MT 1205; SC45MT 1005.. |
| Through Coolant | No |
| Multi-Use Tool | Yes |
| Multi-Use Application | Facing |
| Insert Holding Method | Screw |
| Rake | Negative |
| Center to Cutting Edge (mm) | 17.00 |
| Center to Cutting Edge (Decimal Inch) | 0.6693 |
| Rake Angle | -4 |
| Complete Insert Compatibility | CC95MT 100504-SM; QC95MT 100504-SM; RC90MT 1205M0-SM; SC45MT 100508-SM |
