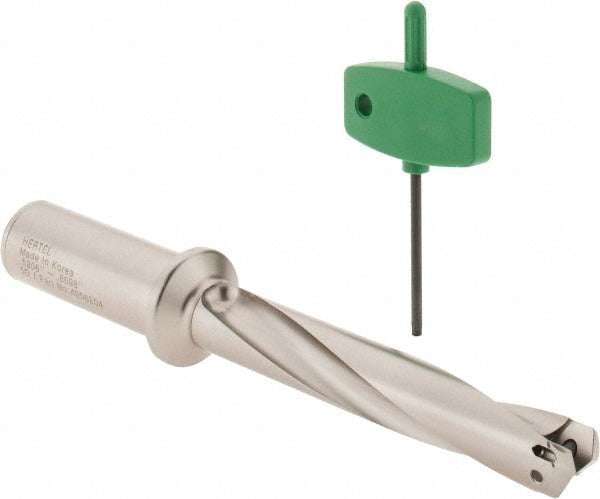

Brand: Hertel / Part #: 4006216
Item #: 54810205
Brand: Hertel
Model #: 4006216
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.6890 |
| Minimum Drill Diameter (mm) | 17.50 |
| Maximum Drill Diameter (mm) | 17.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.7080 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (mm) | 87.50 |
| Maximum Drill Depth (Decimal Inch) | 3.4449 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Inch - 0 Decimals) | 0.7500 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Tool Material | Steel |
| Maximum Drill Depth Range (Decimal Inch) | 2.5000 to 3.5000 |
| Maximum Drill Depth Range (mm) | 80.00 to 100.00 |
| Series | HMD |
| Toolholder Style | HMD-MAL |
| Flute Length (mm) | 106.20 |
| Flute Length (Decimal Inch) | 4.1875 |
| Body Length (Decimal Inch) | 6.5313 |
| Shank Length (Decimal Inch) | 2.0000 |
| Shank Length (mm) | 50.80 |
| Coolant Through | Yes |
