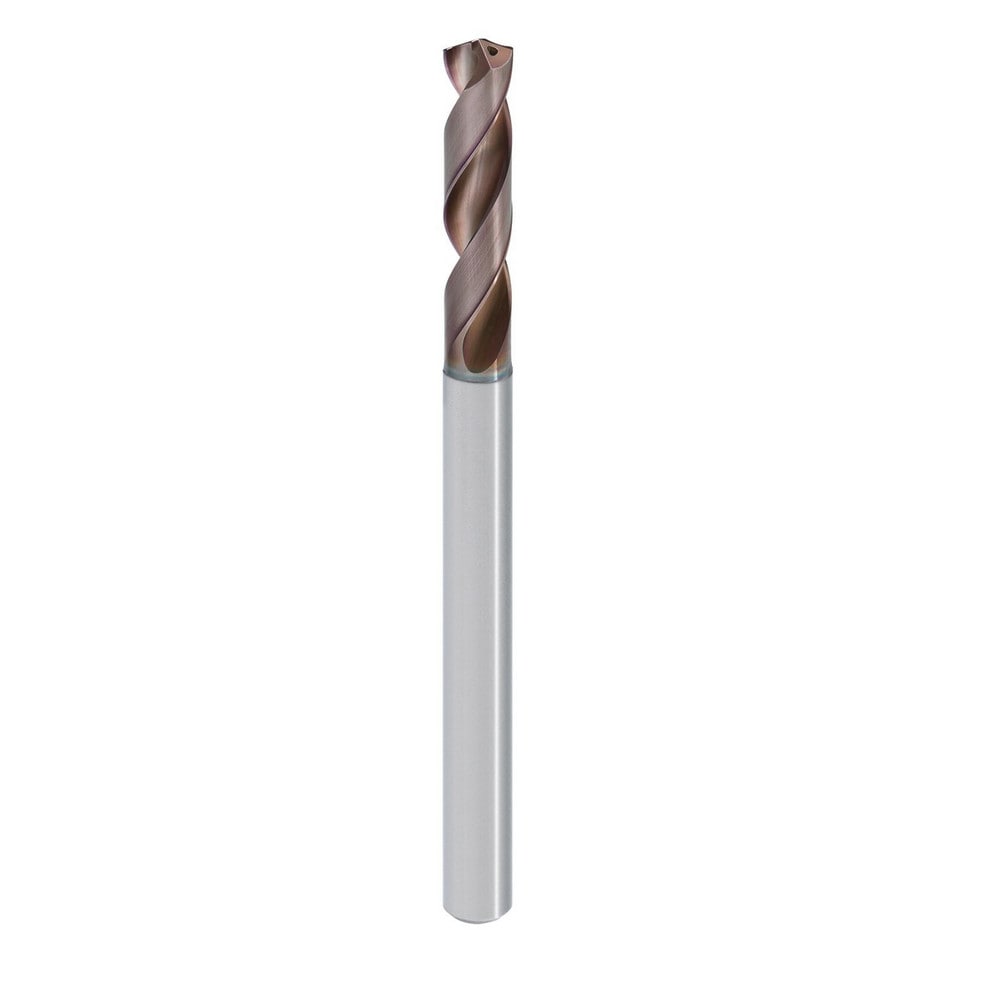

Micro Drill Bit: 2.10 mm Dia, (0.0827"), 140 deg, Solid Carbide
Item #: 49842461
Brand: Mitsubishi
Model #: 10517154
Product Specifications
| Drill Bit Size (mm) | 2.10 |
| Drill Bit Size (Decimal Inch) | 0.0827 |
| Tool Material | Solid Carbide |
| Flute Length (Decimal Inch) | 1.2756 |
| Flute Length (mm) | 32.40 |
| Coating/Finish | TiAlN |
| Coolant Through | Yes |
| Drill Point Angle | 140 |
| Cutting Direction | Right Hand |
| Maximum Drilling Depth (mm) | 25.60 |
| Maximum Drilling Depth (Decimal Inch) | 1.0079 |
| Number Of Flutes | 2 |
| Series | MVS |
| Overall Length (Decimal Inch) | 2.9291 |
| Overall Length (mm) | 74.40 |
| Flute Type | Spiral |
| Shank Type | Straight-Cylindrical |
| Point Type | X-Thinning |
| Tool Application | Very Small Hole Drilling; Deep Hole Drilling |
| Web Thinning | X-Thinned |
| Web Configuration | Parallel |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel; Aluminum; Cast Iron; Brass; Carbon Steel; Superalloys & Titanium; Aluminum Alloy; Steel; Copper; Hardened Steel |
| Secondary Workpiece Material Code | P; K; M; N |
| Standards | ISO |
| Shank Diameter (Decimal Inch) | 0.1181 |
| Shank Diameter (mm) | 3.00 |
| Shank Length (Decimal Inch) | 1.5748 |
| Shank Length (mm) | 40.00 |
| Flute By Diameter Ratio | 12xD |
| UNSPSC Code | 23241600 |
