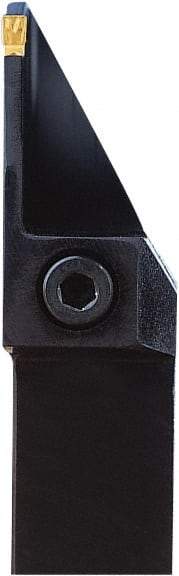

Seco - External Thread, 0.53" Max Depth of Cut, 4mm Min Groove Width, 6" OAL, Left Hand Indexable Grooving Cutoff Toolholder - 1" Shank Height x 1" Shank Width, LCMR Insert Style, CFPL Toolholder Style, Series Multi-Directional Turning (MDT)
Item #: 05668025
Brand: Seco
Model #: 86320
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.5300 |
| Minimum Groove Width (mm) | 4.00 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Series | Multi-Directional Turning (MDT) |
| Toolholder Style | CFPL |
| Insert Compatibility | LCMR |
| Shank Height (Inch) | 1 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Clamp |
| Full Radius Insert | No |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2500 |
| Head Length (Decimal Inch) | 1.6500 |
| Complete Insert Compatibility | LC.. 1604.. |
