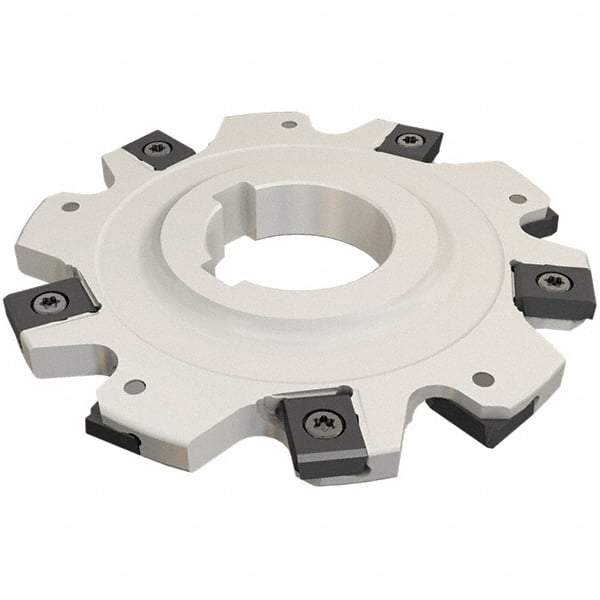

Iscar - Arbor Hole Connection, 0.6693" Depth of Cut, 80mm Cutter Diam, 1-1/16" Hole Diam, 8 Tooth Indexable Slotting Cutter - SDN-LN12 Toolholder, LNET Insert
Item #: 05596861
Brand: Iscar
Model #: 3102976
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Maximum Depth of Cut (mm) | 17.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.6693 |
| Cutter Diameter (mm) | 80.00 |
| Cutter Diameter (Decimal Inch) | 3.1496 |
| Hole Diameter (mm) | 27.00 |
| Hole Diameter (Decimal Inch) | 1.0630 |
| Number of Teeth | 8 |
| Toolholder Style | SDN-LN12 |
| Series | TangSlot(SDN-LN12) |
| Insert Style | LNET |
| Staggered Tooth | Yes |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw |
| Minimum Cutting Width (Decimal Inch) | 0.3937 |
| Maximum Cutting Width (Decimal Inch) | 0.4724 |
| Maximum Cutting Width (mm) | 12.00 |
| Hub Diameter (mm) | 41.00 |
| Hub Diameter (Decimal Inch) | 1.6142 |
