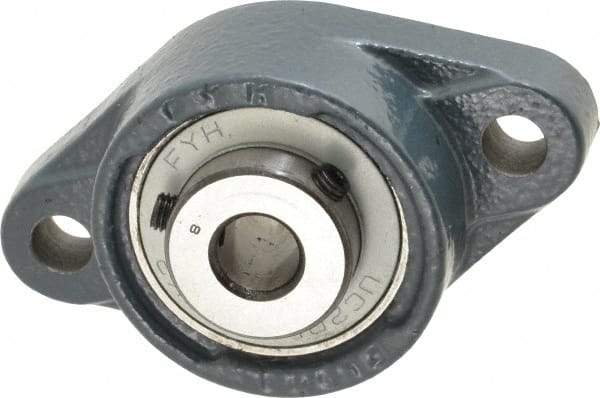

Value Collection - 1/2" ID, 2-7/32" OAW x 3-7/8" OAL x 2-7/32" OAH 2-Bolt High Temperature Flange Bearing - 1,650 Lb Static Cap, 2,830 Lb Dyn Cap, 3" Btw Mnt Hole Ctrs, 19/32" Base-to-Ctr Ht, Cast Iron
Item #: 05550603
Brand: Value Collection
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | 2 Bolt Flange Bearings High Temperature |
| Inside Diameter (Inch) | 1/2 |
| Width (Inch) | 1.221 |
| Width (Decimal Inch) | 1.2205 |
| Width (mm) | 31.00 |
| Overall Length (Inch) | 3-7/8 |
| Overall Length (mm) | 98.4250 |
| Overall Length (Decimal Inch) | 3.8750 |
| Overall Height (Inch) | 2-7/32 |
| Overall Height (Decimal Inch) | 2.2188 |
| Overall Height (mm) | 56.35625 |
| Static Load Capacity (Pounds) | 1650.00 |
| Dynamic Load Capacity (Pounds) | 2830 |
| Distance Between Mounting Hole Centers (Decimal Inch) | 3.0000 |
| Material | Cast Iron |
| Distance Between Base And Center (Decimal Inch) | 0.5938 |
| Distance Between Base And Center (Inch) | 19/32 |
| Bolt Size (Inch) | 5/16 |
| Bolt Size (Decimal Inch) | 0.3125 |
