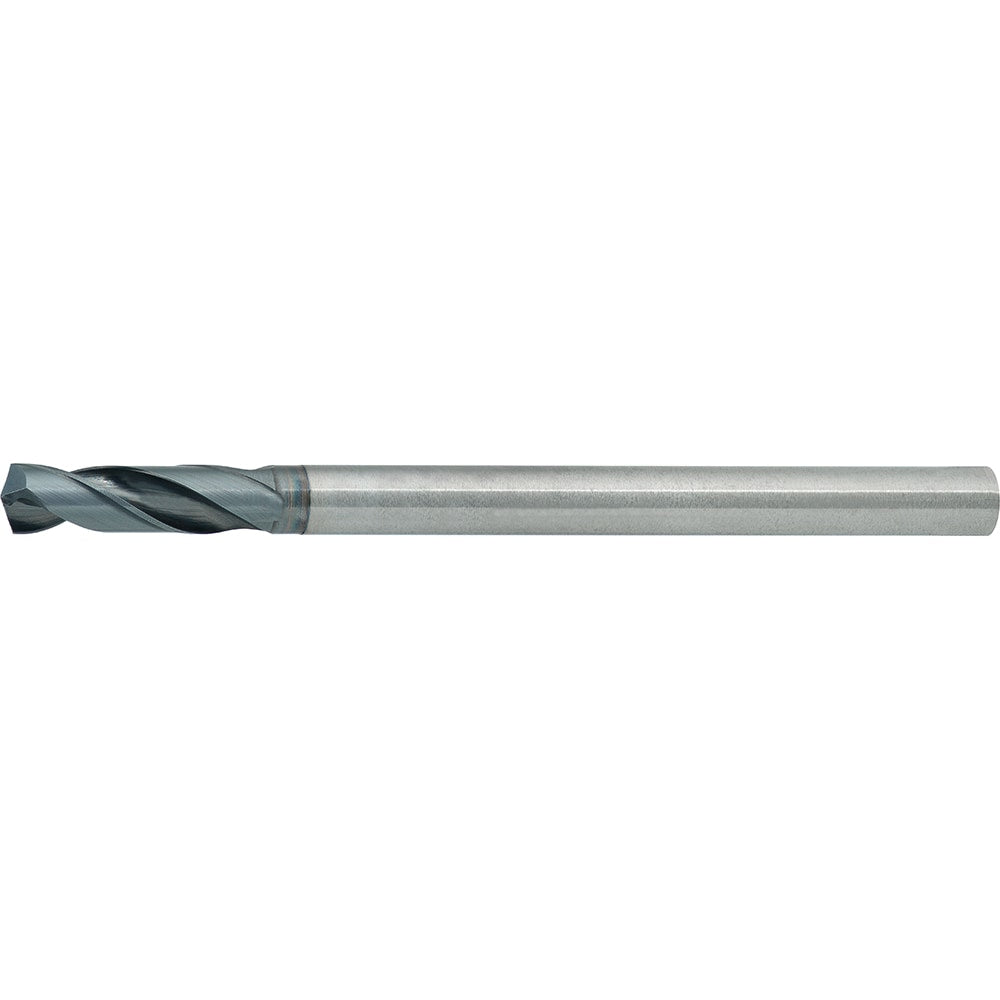

Jobber Drill: 8.60 mm Dia, 140 deg Point, Solid Carbide
Item #: 97757371
Brand: Mitsubishi
Model #: 10607916
Product Specifications
| Drill Bit Size (mm) | 8.60 |
| Drill Bit Size (Decimal Inch) | 0.3386 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 140 |
| Coating/Finish | TiAlN |
| Flute Type | Helical |
| Cutting Direction | Right Hand |
| Point Type | X-Thinned |
| Primary Workpiece Material | High-Temp Alloy |
| Coolant Through | Yes |
| Primary Workpiece Material Code | S |
| Shank Diameter (Decimal Inch) | 0.3543 |
| Overall Length (mm) | 85.60 |
| Overall Length (Decimal Inch) | 3.3701 |
| Flute Length (mm) | 34.60 |
| Flute Length (Decimal Inch) | 1.3622 |
| Series | DWAE |
| Tool Application | Drilling; Cross Hole; Stack Drilling |
| Flute By Diameter Ratio | 2xD |
| Shank Diameter (mm) | 9 |
| Maximum Drilling Depth (Decimal Inch) | 0.7402 |
| Maximum Drilling Depth (mm) | 18.80 |
| Shank Length (mm) | 49 |
| Shank Length (Decimal Inch) | 1.9291 |
| Drill Point Length (mm) | 1.60 |
| Drill Point Length (Decimal Inch) | 0.0630 |
| Web Thinning | X-Thinned |
| Web Configuration | Parallel |
| Shank Type | Straight |
| Drill Bit Grade | High Precision; High Performance |
| Specification Designation | ISO |
| UNSPSC Code | 23241634 |
| Country of Origin | VARIOUS |
