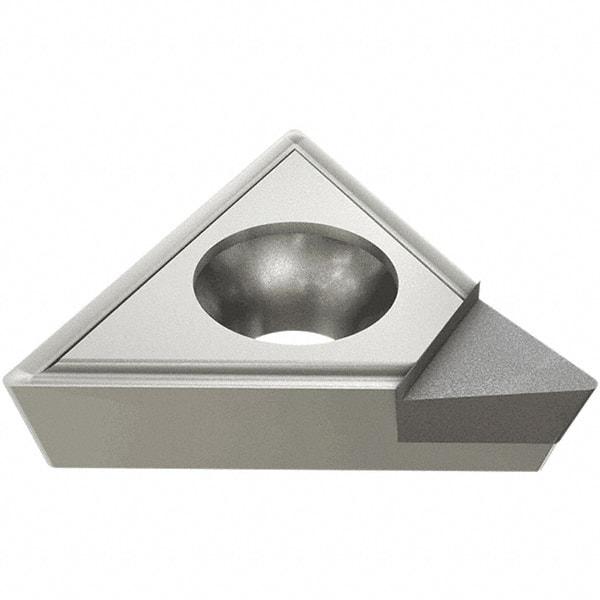

Iscar - TPGX730 Grade ID5 Polycrystalline Diamond (PCD) Turning Insert - Uncoated, 60° Triangle, 7/32" Inscr Circle, 3/32" Thick, 0.0079" Corner Radius
Item #: 05432752
Brand: Iscar
Model #: 5401703
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.
| Product Specifications | |
|---|---|
| Insert Style | TPGX |
| Insert Size | 730 |
| Material | Polycrystalline Diamond (PCD) |
| Length (mm) | 9.52 |
| Length (Decimal Inch) | 0.3748 |
| Inscribed Circle (Decimal Inch) | 0.2189 |
| Inscribed Circle (Inch) | 7/32 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Manufacturer's Grade | ID5 |
| Coating | Uncoated |
| Hole Diameter (mm) | 2.50 |
| Hole Diameter (Decimal Inch) | 0.0984 |
| Rake | Positive |
| Rake Angle | 7 |
| Relief Angle | 11 |
| Included Angle | 60 |
| Series | Isoturn |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Insert Holding Method | Screw |
| Shape | Triangle |
