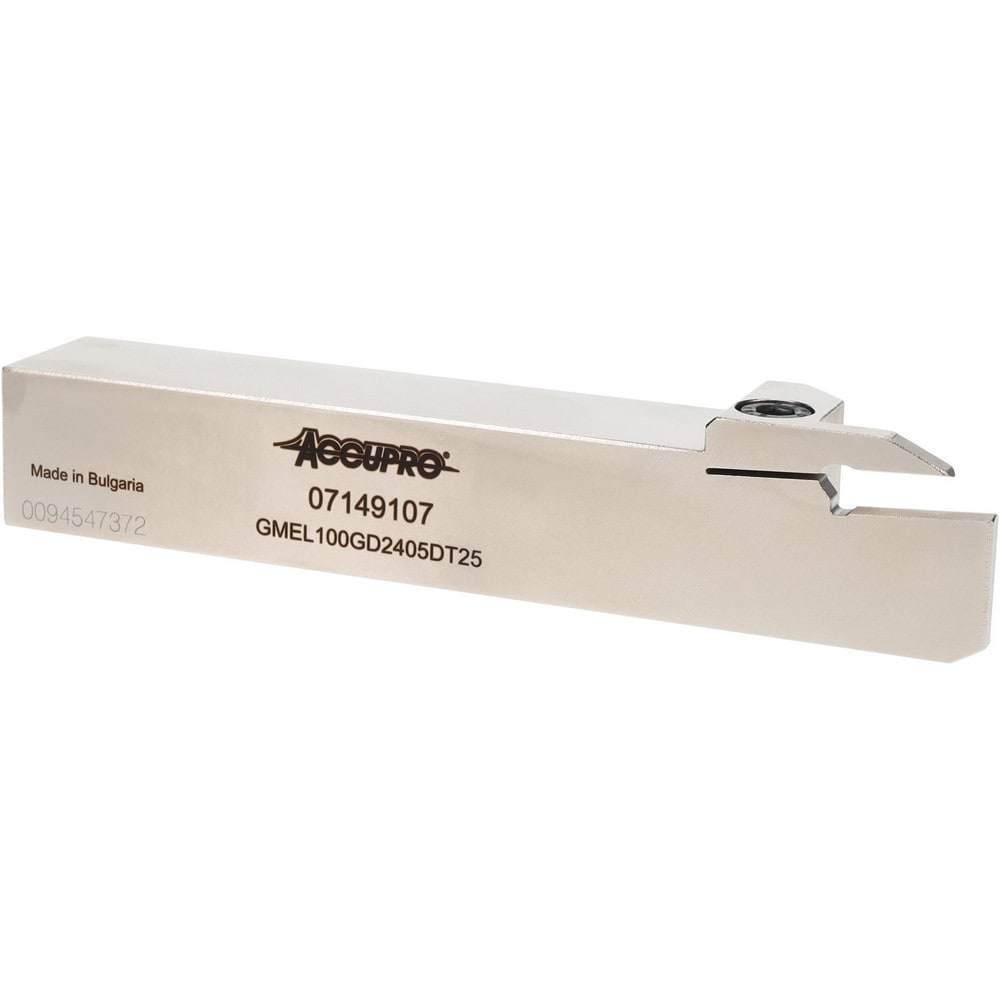

Indexable Grooving Toolholder: GMEL100GD2405DT25, 0.1969" Max Groove Width
Item #: 07149107
Brand: Accupro
Model #: 07149107
Product Specifications
| Toolholder Type | External Grooving |
| Insert Seat Size | 5 |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.9853 |
| Maximum Depth of Cut (mm) | 25.00 |
| Minimum Groove Width (Decimal Inch) | 0.1969 |
| Minimum Groove Width (mm) | 5.00 |
| Maximum Groove Width (mm) | 5.00 |
| Toolholder Style | GMEL |
| Maximum Groove Width (Decimal Inch) | 0.1969 |
| Insert Holding Method | Screw |
| Compatible Insert Size Code | 5 |
| Shank Height (mm) | 25.40 |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | CI |
| Overall Length (mm) | 152.4 |
| Overall Length (Decimal Inch) | 6 |
| UNSPSC Code | 23153308 |
| Toolholder Material | Steel |
| Coolant Through | No |
