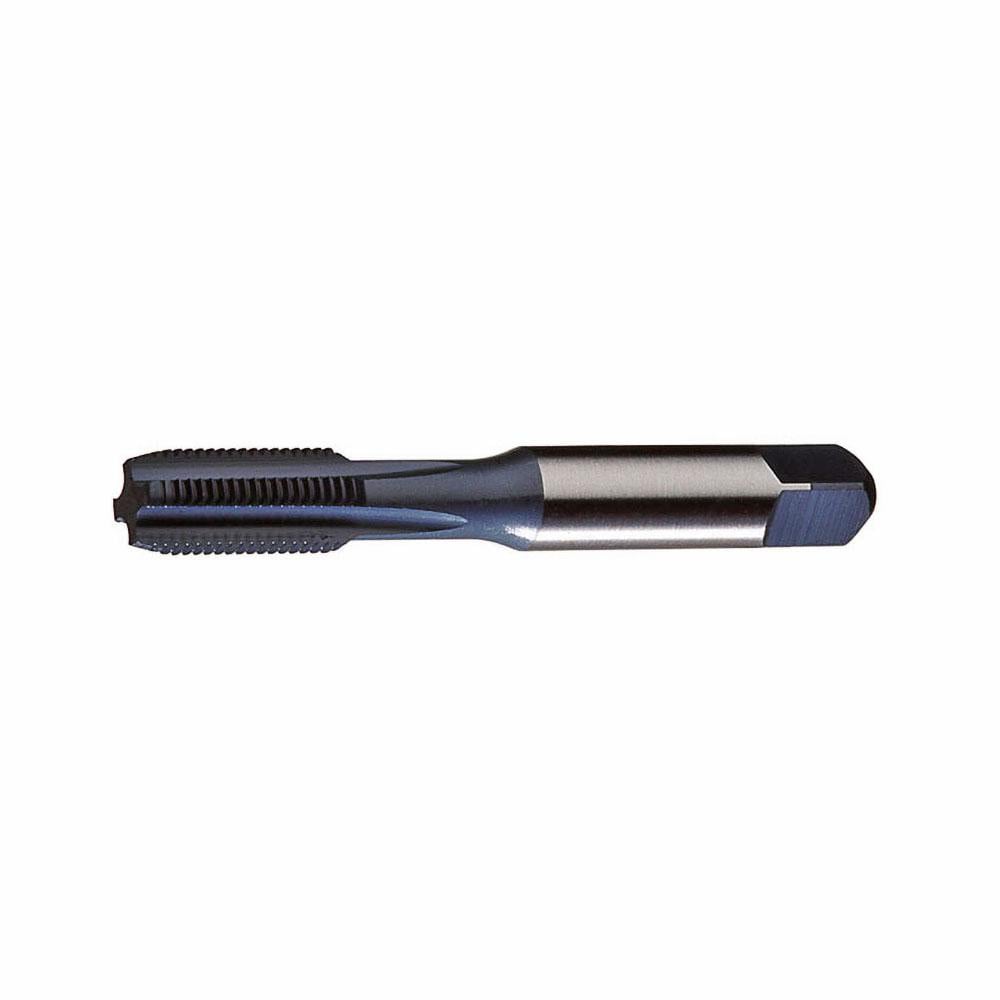

Straight Flute Tap: 3/4-16 UNF, 4 Flute, Modified Bottoming Chamfer, 2B Class of Fit, Powdered Metal, Nitride/Oxide Finish
Item #: 02251544
Brand: Cleveland
Model #: C27667
Product Specifications
| Tap Type | Machine |
| Thread Size (Inch) | 3/4-16 |
| Thread Standard | UNF |
| Chamfer | Modified Bottoming |
| Material | Powdered Metal |
| Coating/Finish | Oxide; Nitride |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Class Of Fit | 2B |
| Thread Limit | H5 |
| Number Of Flutes | 4 |
| Oversize | No |
| Overall Length (Decimal Inch) | 4.2500 |
| Overall Length (Inch) | 4-1/4 |
| Overall Length (mm) | 107.95 |
| Threads per Inch | 16 |
| Thread Length (Decimal Inch) | 2.0000 |
| Thread Length (Inch) | 2 |
| Thread Length (mm) | 50.80 |
| Application | Blind Hole Threading |
| Shank Diameter (mm) | 14.99 |
| Shank Diameter (Decimal Inch) | 0.5900 |
| Square Length (mm) | 17.46 |
| Square Length (Decimal Inch) | 0.6875 |
| Square Length (Inch) | 11/16 |
| Square Size (mm) | 11.23 |
| Square Size (Decimal Inch) | 0.4420 |
| Material Application | Cast Iron; Hardened Steel |
| Series | SD CI1000 |
| UNSPSC Code | 23241600 |
