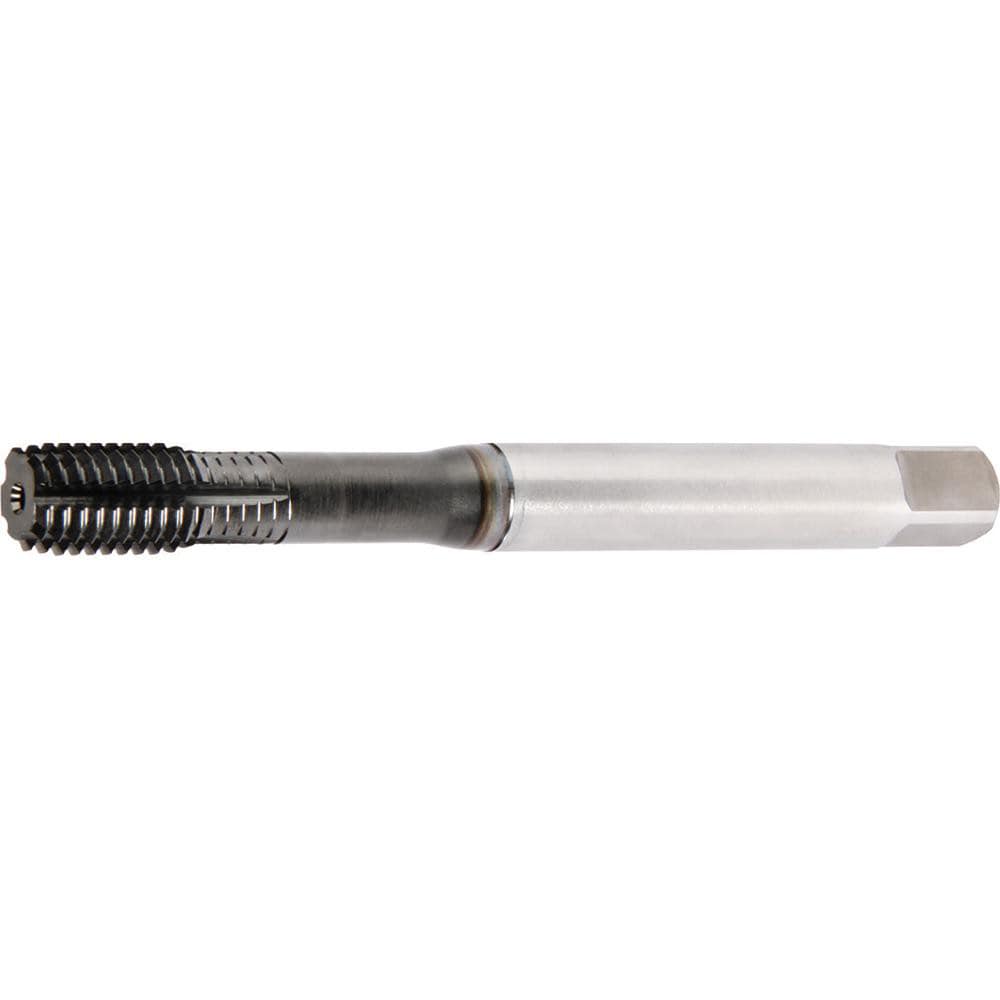

Brand: Widia / Part #: 4159966
Item #: 98992167
Brand: Widia
Model #: 4159966
Product Specifications
| Thread Size (mm) | M6x1 |
| Overall Length (mm) | 80.0000 |
| Chamfer | Semi-Bottoming |
| Coating/Finish | TiN |
| Thread Pitch (mm) | 1.00 |
| Thread Standard | Metric |
| Thread Direction | Right Hand |
| Material | High Speed Steel |
| Thread Length (mm) | 10.00 |
| Thread Depth (mm) | 30.00 |
| Thread Depth | 30.0000 |
| Shank Diameter (mm) | 6.0000 |
| Neck Length | 20.00 |
| Square Length (mm) | 8.00 |
| Material Application | Steel |
| Application | Metal |
| Series | GT23 |
| Tap Type | Blind |
| Tapping Depth (mm) | 30.00 |
| Shank Length (mm) | 50.000 |
| Square Size (mm) | 4.90 |
| Threads per Inch | 25 |
| Class Of Fit | 6HX |
| Coolant Through | Yes |
