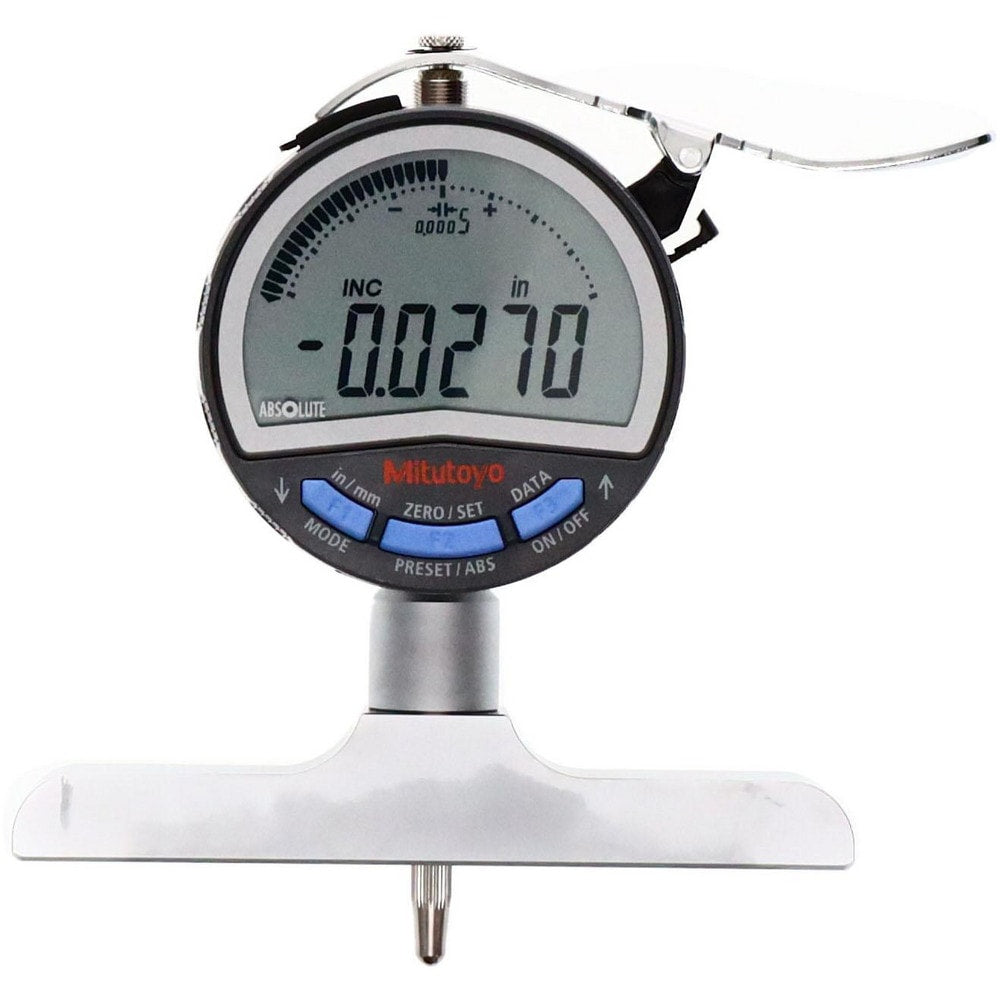

Electronic Depth Gages; Resolution (mm): 0.01; 0.001; Resolution (Decimal Inch): 0.0005; 0.001; Rod Type: Solid; Base Length (Inch): 4; Accuracy (Decimal Inch): +/-.001; Accuracy (mm): 0.0254; Calibrated: No; Color: Silver; Black; Base Flatness (Decimal I
Item #: 90980293
Brand: Mitutoyo
Model #: 547-218A
Product Specifications
| Accuracy (mm) | 0.0254 |
| Accuracy (Decimal Inch) | +/-.001 |
| Minimum Measurement (mm) | 0.00 |
| Minimum Measurement (Decimal Inch) | 0.0000 |
| Maximum Measurement (mm) | 200.00 |
| Maximum Measurement (Decimal Inch) | 8.0000 |
| Resolution (Decimal Inch) | 0.0005 |
| Resolution (mm) | 0.01 |
| Base Length (Inch) | 4 |
| Base Flatness (Decimal Inch) | 0.000200 |
| Measuring Force (N) | 0 to 1.5 |
| Rod Type | Solid |
| Material | Carbide-Tipped |
| Rod Length | 4 |
| Overall Height (Decimal Inch) | 0.8000 |
| Calibrated | No |
| Color | Silver; Black |
| Water Resistance Rating | None |
| Features | The bottom surface of the base is hardened, ground, and lapped for highest degree of flatness.; Can keep track of the origin point once set for the entire life of the battery. |
| Includes | Extension rod; Battery |
| UNSPSC Code | 41111600 |
| Country of Origin | Japan |
