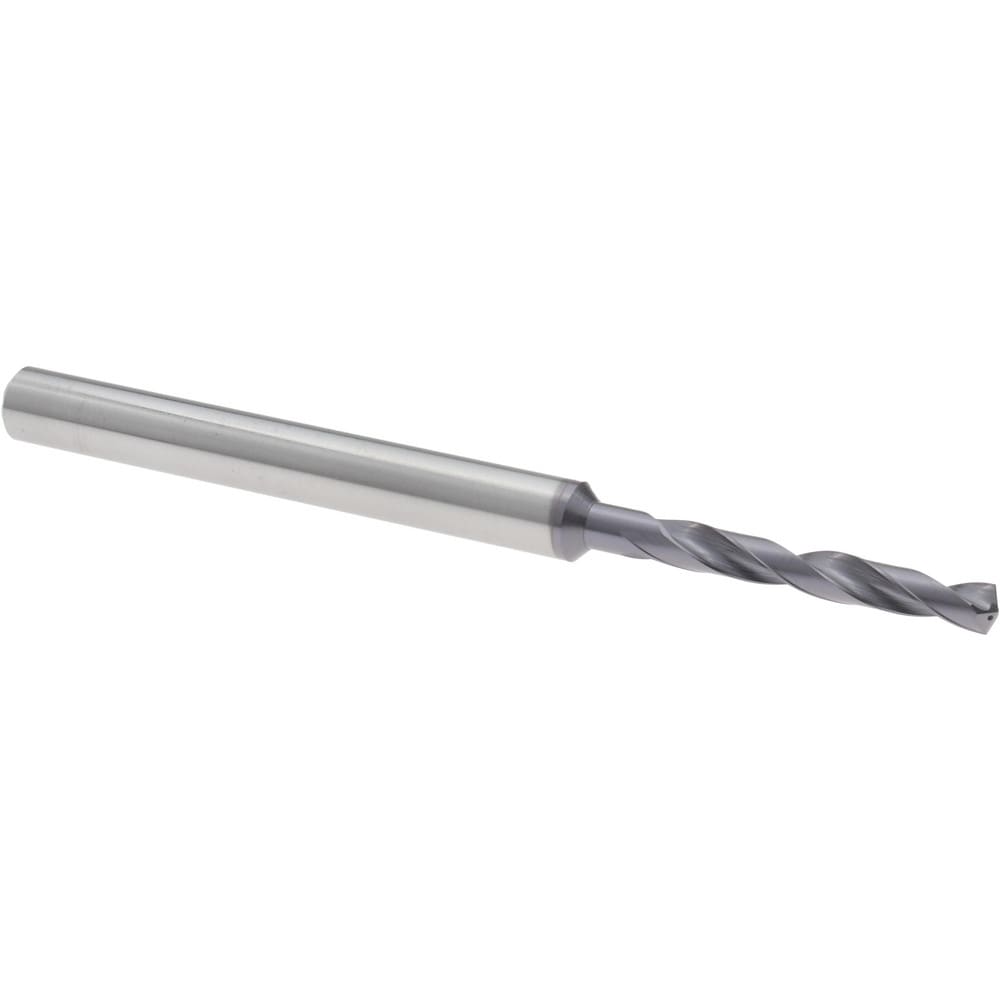

Screw Machine Length Drill Bit: 9/64" Dia, 140 deg Point, Solid Carbide
Item #: 61705984
Brand: Accupro
Model #: 4500308
Product Specifications
| Drill Bit Size (Inch) | 9/64 |
| Drill Bit Size (Decimal Inch) | 0.1406 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | TiAlN |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Regular Spiral |
| Drill Point Angle | 140 |
| Coolant Through | Yes |
| Primary Workpiece Material | Stainless Steels |
| Point Type | Web-Thinned |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.2344 |
| Overall Length (Decimal Inch) | 3.1500 |
| Series | ASSC140-TA-CL |
| Web Thinning | R-Thinned |
| Proprietary Coating/Finish | TiAlN |
| Flute By Diameter Ratio | 3xD |
| Flute Length (Decimal Inch) | 1.1260 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.1000 to 0.1500 |
| Specification Designation | ISO |
| UNSPSC Code | 23241635 |
| Drill Bit Size (Inch) | 9/64 |
| Drill Bit Size (Decimal Inch) | 0.1406 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | TiAlN |
| Number Of Flutes | 2 |
| Spiral Type | Regular |
| Flute Type | Regular Spiral |
| Drill Point Angle | 140 |
| Coolant Through | Yes |
| Primary Workpiece Material | Stainless Steels |
| Point Type | Web-Thinned |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.2344 |
| Overall Length (Decimal Inch) | 3.1500 |
| Series | ASSC140-TA-CL |
| Web Thinning | R-Thinned |
| Proprietary Coating/Finish | TiAlN |
| Flute By Diameter Ratio | 3xD |
| Flute Length (Decimal Inch) | 1.1260 |
| Drill Bit Grade | High Performance |
| Drill Bit Size Range (Decimal Inch) | 0.1000 to 0.1500 |
| Specification Designation | ISO |
| UNSPSC Code | 23241635 |
| MSC Part # | 61705984 |
| Mfr Part # | 4500308 |
| Big Book Page # | 140 |
| Country of Origin Country of Origin is subject to change | South Korea |
