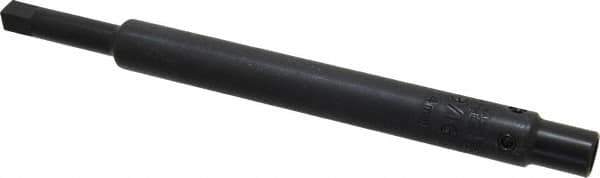

Walton - 9/16 Inch Tap, 8 Inch Overall Length, 11/16 Inch Max Diameter, Tap Extension - 0.43 Inch Tap Shank Diameter, 0.428 Inch Extension Shank Diameter, 0.32 Inch Extension Square Size, Alloy Steel
Item #: 05019609
Brand: Walton
Model #: 40056
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Minimum Tap Size (mm) | M14 |
| Minimum Tap Size (Inch) | 9/16 |
| Maximum Tap Size (mm) | M14 |
| Maximum Tap Size (Inch) | 9/16 |
| Overall Length (Inch) | 8 |
| Tap Shank Diameter (Decimal Inch) | 0.4300 |
| Maximum Diameter (Inch) | 11/16 |
| Tap Square Size (Decimal Inch) | 0.3220 |
| Shank Diameter (Decimal Inch) | 0.4280 |
| Extension Square Size (Decimal Inch) | 0.3200 |
| Material | Alloy Steel |
| Extension Opening Outside Diameter (Decimal Inch) | 0.5620 |
