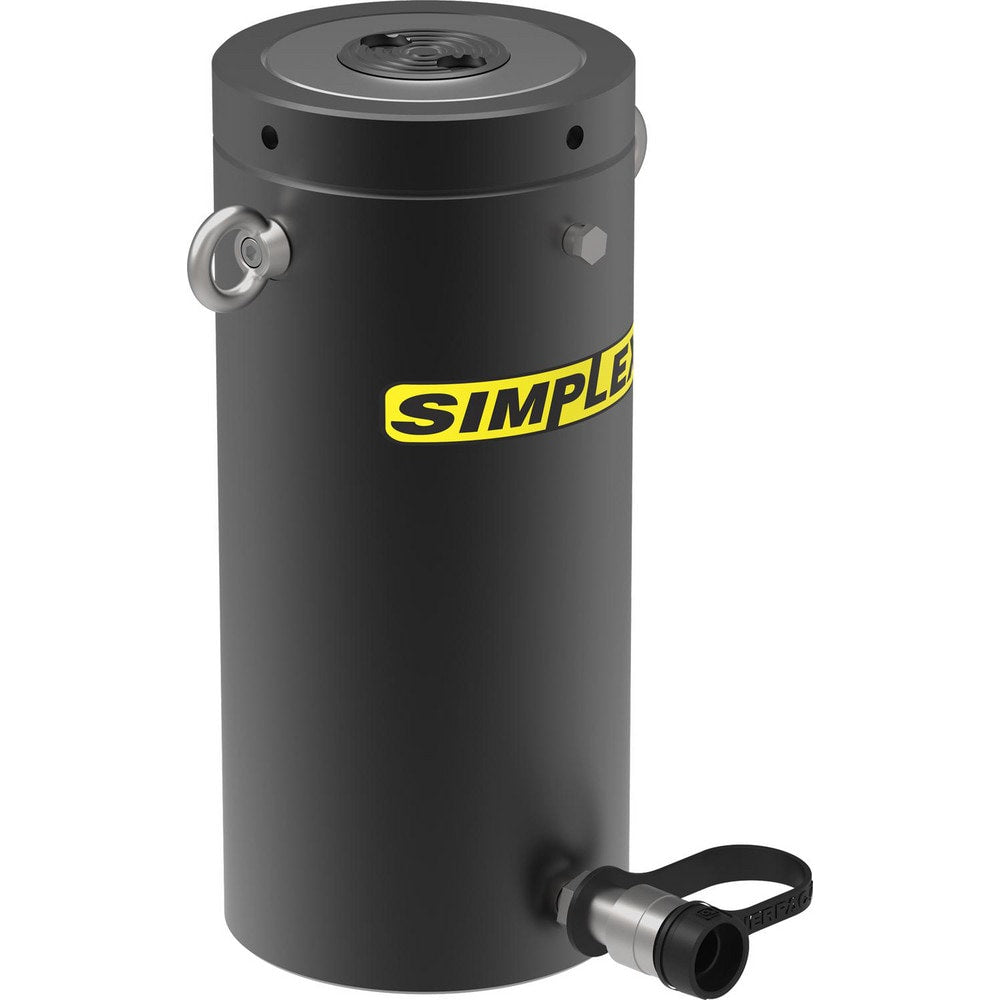

Portable Hydraulic Cylinders; Actuation: Single Acting; Load Capacity: 104; Stroke Length: 9.84; Oil Capacity: 202.49; Cylinder Bore Diameter (Decimal Inch): 5.12; Cylinder Effective Area: 1; Lowered Height: 15.39
Item #: 72651474
Brand: Enerpac
Model #: RCL10010
Product Specifications
| Actuation | Single Acting |
| Load Capacity | 104 |
| Stroke Length | 9.84 |
| Oil Capacity | 202.49 |
| Cylinder Bore Diameter (Decimal Inch) | 5.12 |
| Cylinder Effective Area | 1 |
| Lowered Height | 15.39 |
| Retracted Length | 15 |
| Extended Length | 25.24 |
| Cushion Type | No Cushion |
| Bore Diameter | 5.1200 |
| Outside Diameter | 6.69 in |
| Maximum Working Pressure | 10150.000 |
| Body Material | Steel |
| Saddle Diameter | 2.8 |
| Series | RCL |
| Maximum Height (Inch) | 25.2400 |
| UNSPSC Code | 27121602 |
| Actuation | Single Acting |
| Load Capacity | 104 |
| Stroke Length | 9.84 |
| Oil Capacity | 202.49 |
| Cylinder Bore Diameter (Decimal Inch) | 5.12 |
| Cylinder Effective Area | 1 |
| Lowered Height | 15.39 |
| Retracted Length | 15 |
| Extended Length | 25.24 |
| Cushion Type | No Cushion |
| Bore Diameter | 5.1200 |
| Outside Diameter | 6.69 in |
| Maximum Working Pressure | 10150.000 |
| Body Material | Steel |
| Saddle Diameter | 2.8 |
| Series | RCL |
| Maximum Height (Inch) | 25.2400 |
| UNSPSC Code | 27121602 |
| MSC Part # | 72651474 |
| Mfr Part # | RCL10010 |
| Country of Origin Country of Origin is subject to change | Spain |
