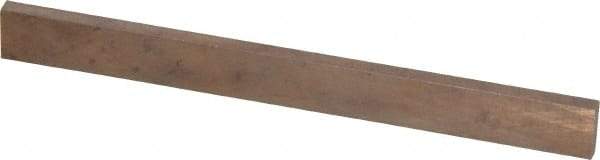

Eclipse - 4" Long x 1/8" Wide x 3/8" High, Alnico Rectangle Bar Magnet - 550°C Max Operating Temp, Grade 5 Alnico
Item #: 04891164
Brand: Eclipse
Model #: M19087/MSC
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Bar Shape | Rectangle |
| Width/Diameter (mm) | 3.18 |
| Width/Diameter (Inch) | 1/8 |
| Width/Diameter (Decimal Inch) | 0.1250 |
| Length (mm) | 101.60 |
| Length (Inch) | 4 |
| Length (Decimal Inch) | 4.0000 |
| Height (Decimal Inch) | 0.3750 |
| Height (mm) | 9.53 |
| Height (Inch) | 3/8 |
| Maximum Pull Force (Lb.) | 1.76 |
| Maximum Pull Force (kg) | 0.80 |
| Magnet Material Grade | Alnico 5 |
| Maximum Operating Temperature (F) | 1022.00 |
| Maximum Operating Temperature (C) | 550.00 |
