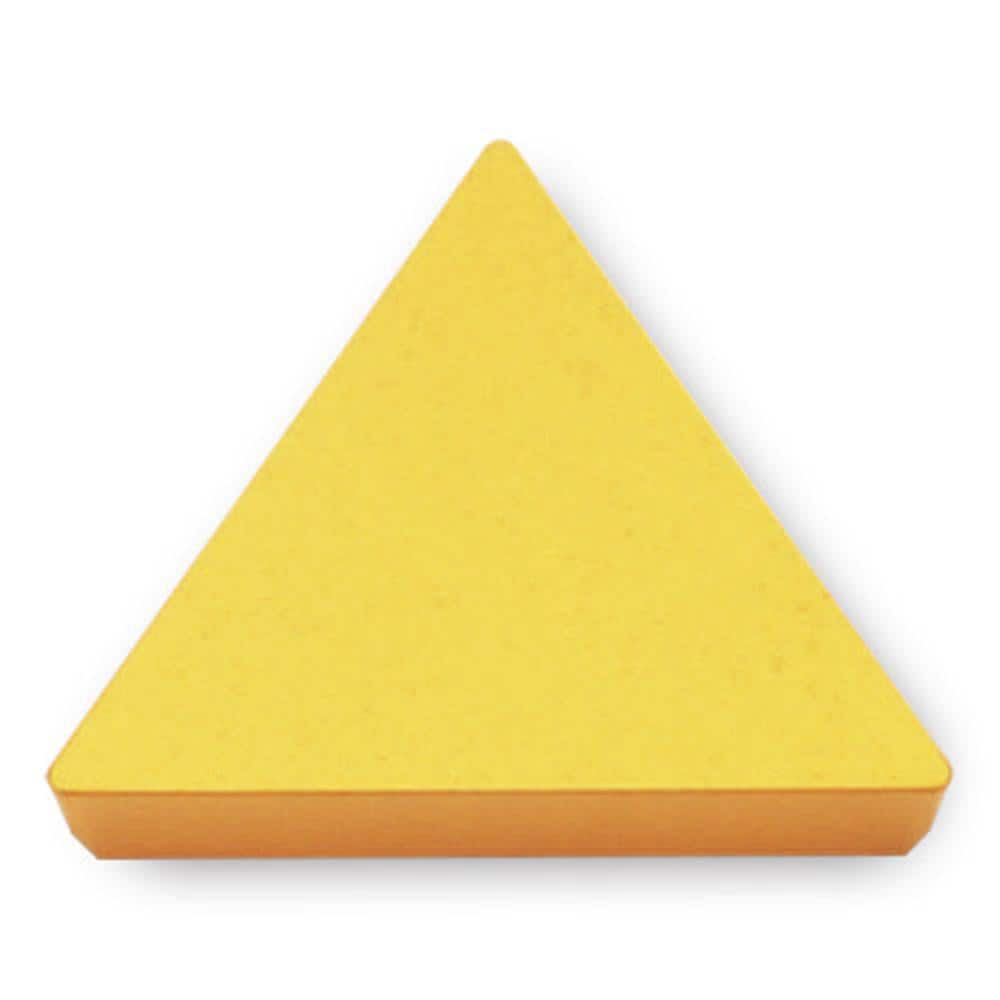

Turning Insert: TPU322 TT8020, Carbide
Item #: 19494368
Brand: Ingersoll Cutting Tools
Model #: 5608690
Product Specifications
| ANSI Insert Code | TPU322 |
| ISO Insert Code | TPU160308 |
| Relief Angle | 11 |
| Insert Style | TPU |
| Corner Radius (Decimal Inch) | 0.0310 |
| Included Angle | 60 |
| Manufacturer Grade | TT8020 |
| Coating/Finish | TiCN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Series | TPU |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Material | Carbide |
| Insert Shape | T - Triangle |
| Chip Breaker Operation | No Chip Breaker |
| Grade Characteristics | Steel (P) - Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - Moderate Wear-Resistance and Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 3 |
| Insert Shape Code | T |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Insert Holding Method | Clamp |
| Clearance Code | P |
| Tolerance Code | U |
| Coating Process | PVD |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.5710 |
| Primary Workpiece Material | Superalloy; Stainless Steel; Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Iso Code | TPUN160308 TT8020 |
| Chip Breaker | No Chip Breaker |
| Width (Decimal Inch - 4 Decimals) | 0.5710 |
| ANSI Size Code | 322 |
| ISO Size Code | 160308 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 322 |
