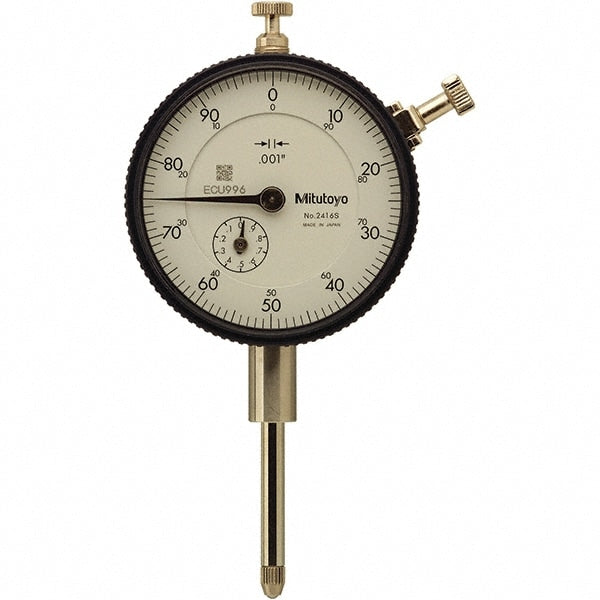

Brand: Mitutoyo / Part #: 2416AB
Item #: 31404643
Brand: Mitutoyo
Model #: 2416AB
Product Specifications
| Accuracy (Decimal Inch) | 0.001000 |
| Back Type | Flat |
| Bearing Type | Jeweled |
| Maximum Measurement (Decimal Inch) | 1.0000 |
| Maximum Measurement (Inch) | 1 |
| Dial Graduation (Decimal Inch) | 0.001000 |
| Dial Reading | 1-100 |
| Measuring Force (N) | 1.80 |
| Dial Diameter (mm) | 57.00 |
| Stem Diameter (Inch) | 3/8 |
| Stem Length (mm) | 13.60 |
| Overall Length (mm) | 115.70 |
| Dial Color | White |
| Thread Size | #4-48 |
| Revolution Counter | Yes |
| Standards | ANSI/AGD |
| AGDGpNo | 0 |
| Range Per Revolution (Decimal Inch) | 0.1000 |
| Product Service Code | 5220 |
