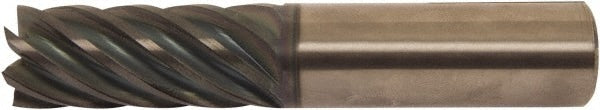

Square End Mill: 1-1/4" Dia, 2-5/8" LOC, 7 Flute, Solid Carbide
Item #: 42527457
Brand: Accupro
Model #: 312851
Product Specifications
| Mill Diameter (mm) | 25.40 |
| Mill Diameter (Decimal Inch) | 1.2500 |
| Mill Diameter (Inch) | 1-1/4 |
| Number Of Flutes | 7 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 2.6250 |
| Length of Cut (Inch) | 2-5/8 |
| Length of Cut (mm) | 66.68 |
| Shank Diameter (mm) | 31.75 |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Overall Length (mm) | 114.30 |
| Overall Length (Decimal Inch) | 4.5000 |
| Overall Length (Inch) | 4-1/2 |
| Single Or Double End | Single |
| Coating/Finish Family | AlTiCrN |
| Centercutting | No |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 38 |
| Primary Workpiece Material | High-Temp Alloy |
| Primary Workpiece Material Code | S |
| Coating/Finish | AlTiCrN |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Material Grade | Micrograin |
| Length Of Cut Range (Decimal Inch) | 2.0000+ |
| Series | HS |
| System Of Measurement | Fractional Inch |
| UNSPSC Code | 27112803 |
