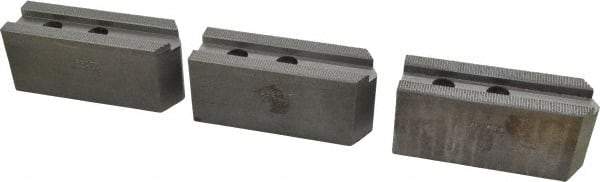

Abbott Workholding Products - 10" & Up Chuck Capacity, 1.5mm x 60° Serrated Attachment, Square Soft Lathe Chuck Jaw - 3 Jaws, Steel, 1.2598" Btw Mount Hole Ctrs, 4-1/2" Long x 1-1/2" Wide x 2" High, 0.6299" Groove, 0.4724" & 12mm Fastener
Item #: 04231106
Brand: Abbott Workholding Products
Model #: MTT10S
Exact Tooling IR#: 04
Features and Benefits
Pointed jaws are blanks used for smaller part diameters, allowing closer contact than square end jaws.
| Product Specifications | |
|---|---|
| Jaw Type | Square |
| Material | Steel |
| Jaw Interface Type | 1.5mm x 60 Serrated |
| Maximum Compatible Chuck Diameter (Inch) | 10 |
| Maximum Compatible Chuck Diameter (Decimal Inch) | 10.0000 |
| Maximum Compatible Chuck Diameter (mm) | 254.00 |
| Overall Height (mm) | 50.80 |
| Overall Height (Inch) | 2 |
| Groove Width (mm) | 16.00 |
| Groove Width (Decimal Inch) | 0.6299 |
| Distance Between Mount Hole Centers (mm) | 32.00 |
| Distance Between Mount Hole Centers (Decimal Inch) | 1.2598 |
| Jaw End Shape | Pointed |
| Fastener Size (mm) | 12.00 |
| Fastener Size (Decimal Inch) | 0.4724 |
| Number of Jaws | 3 |
| Overall Width/Diameter (mm) | 38.10 |
| Overall Width/Diameter (Inch) | 1-1/2 |
| Overall Width/Diameter (Decimal Inch) | 1.5000 |
| Overall Length (Inch) | 4-1/2 |
| Overall Length (Decimal Inch) | 4.5000 |
| Overall Length (mm) | 114.30 |
| Material Grade | 1018 |
