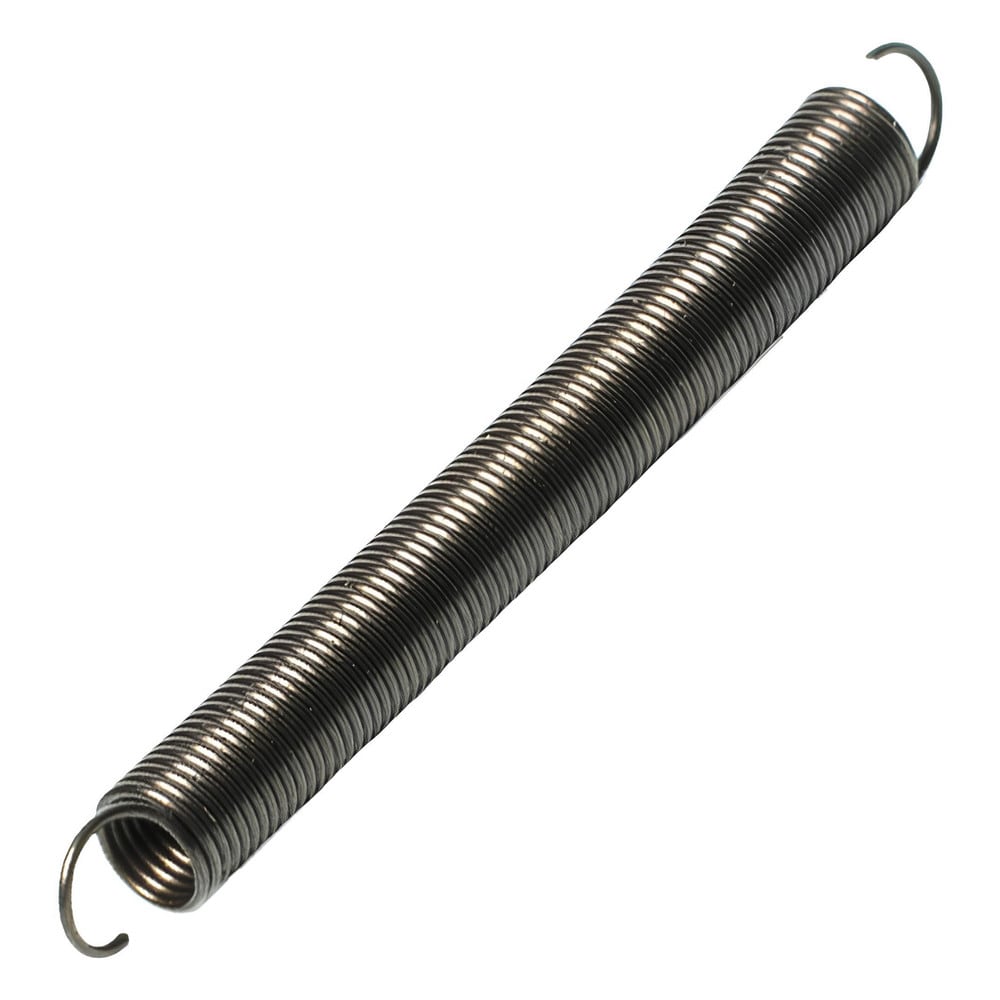

Extension Springs; End Type: Hook; Outside Diameter (mm): 10.0000; Spring Rate: 4.3000; Material: Music Wire; Overall Length (Decimal Inch): 5.0300
Item #: 03148731
Brand: Associated Spring Raymond
Model #: MHM1001400125M
Product Specifications
| End Type | Hook |
| Outside Diameter (mm) | 10.0000 |
| Spring Rate | 4.3000 |
| Material | Music Wire |
| Overall Length (Decimal Inch) | 5.0300 |
| Initial Tension (N) | 15.4 |
| Maximum Extended Length (mm) | 215.00 |
| Free Length (mm) | 125.000 |
| Inside Hook Length (Fractional Inch) | 4-59/64 |
| Standards | JIS G3522 SWP - A/B; EN 10270-1; ASTM A228 |
| Finish/Coating | Dry to Touch Oil |
| Wire Size (mm) | 1.40 |
| UNSPSC Code | 31161907 |
