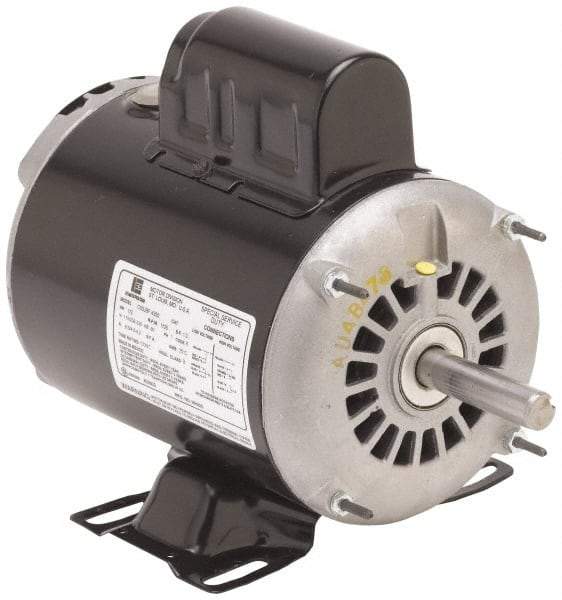

US Motors - 1/3 hp, ODP Enclosure, Auto Thermal Protection, 3,450 RPM, 115/230 Volt, 60 Hz, Single Phase Permanent Split Capacitor (PSC) Motor - Size 48 Frame, Rigid Mount, 1 Speed, Ball Bearings, 6.8/3.4 Full Load Amps, B Class Insulation, Reversible
Item #: 04176434
Brand: US Motors
Model #: 6335
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Single Phase Permanent Split Capacitor (PSC) |
| Type of Enclosure | ODP |
| Horsepower | 1/3 |
| Thermal Protection Rating | Auto |
| Name Plate RPMs | 3450 |
| Voltage | 115/230 |
| Frequency Hz | 60 |
| Frame Size | 48 |
| Mount Type | Rigid |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Applications | General Purpose |
| Full Load Amperage | 6.8/3.4 |
| Insulation Class | B |
| Overall Length (Decimal Inch) | 9.0600 |
| Shaft Diameter x Length (Inch) | 1/2 x 1-1/2 |
| Full Load Efficiency Rating | 62.80 |
| Service Factor Rating | 1.35 |
| Motor Rotation | Reversible |
| PSC Code | 6105 |
