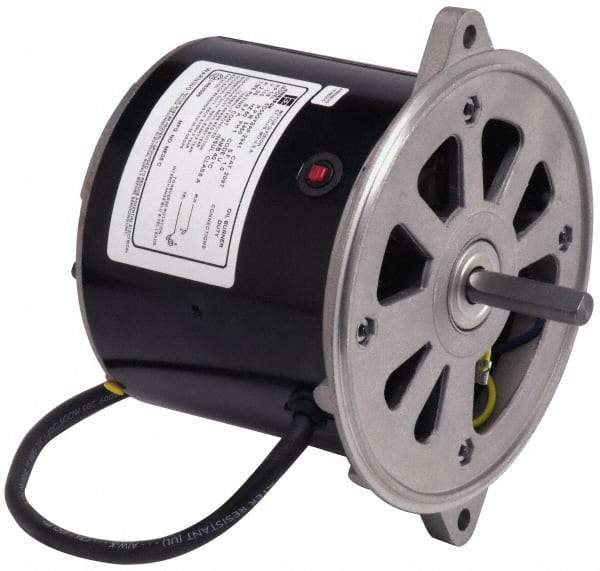

US Motors - 1/7 hp, ODP Enclosure, Manual Thermal Protection, 3,450 RPM, 115 Volt, 60 Hz, Split Phase Motor - Size 48M Frame, M-Flange Mount, 1 Speed, Sleeve Bearings, 2.40 Full Load Amps, A Class Insulation, Reversible
Item #: 04175915
Brand: US Motors
Model #: 3083
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Split Phase |
| Type of Enclosure | ODP |
| Horsepower | 1/7 |
| Thermal Protection Rating | Manual |
| Name Plate RPMs | 3450 |
| Voltage | 115 |
| Frequency Hz | 60 |
| Frame Size | 48M |
| Mount Type | M-Flange |
| Number of Speeds | 1 |
| Bearing Type | Sleeve |
| Applications | HVAC |
| Full Load Amperage | 2.40 |
| Insulation Class | A |
| Overall Length (Decimal Inch) | 7.3000 |
| Shaft Diameter x Length (Inch) | 1/2 x 1-31/32 |
| Full Load Efficiency Rating | 50.60 |
| Service Factor Rating | 1.00 |
| Motor Rotation | Reversible |
| PSC Code | 6105 |
