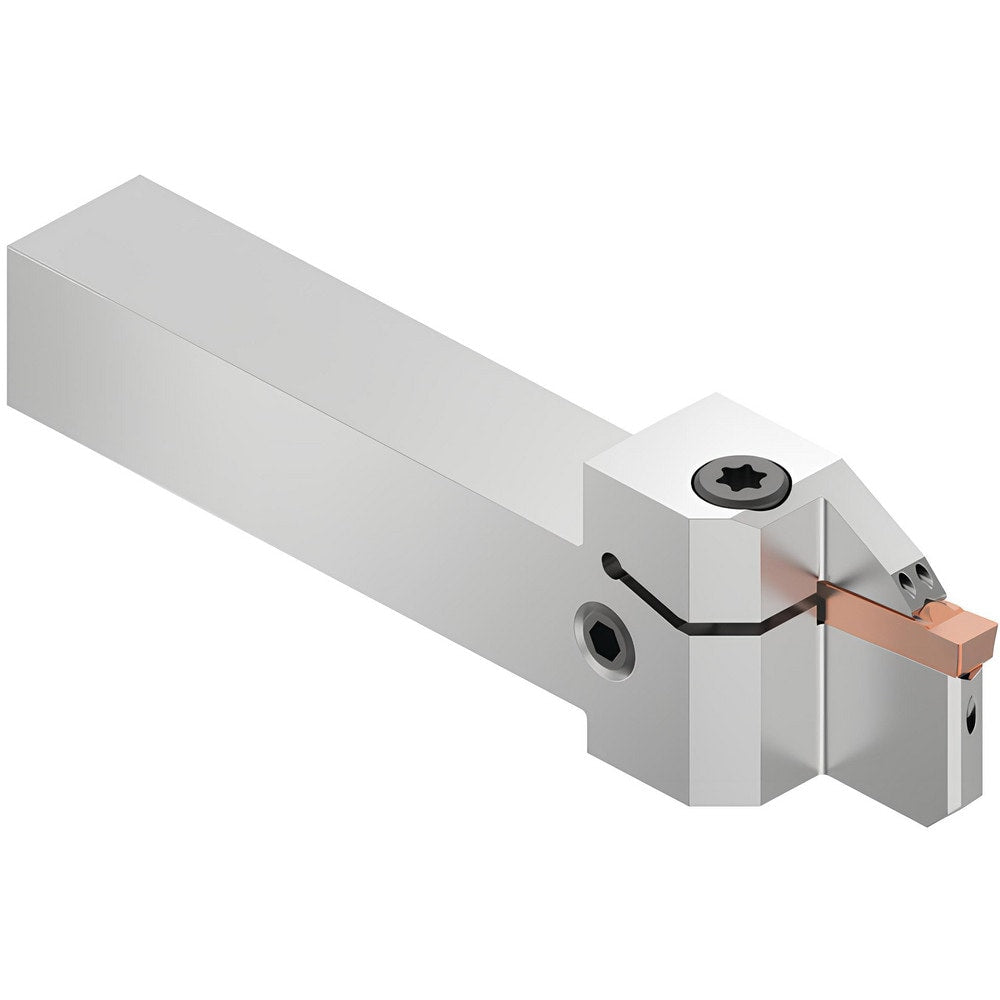

Indexable Grooving/Cut-Off Toolholders; Internal or External: External; Hand of Holder: Right Hand; Maximum Depth of Cut (mm): 20.00; Maximum Groove Width (mm): 8.05
Item #: 67180307
Brand: Kennametal
Model #: 7062386
Product Specifications
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 20.00 |
| Maximum Groove Width (mm) | 8.05 |
| Minimum Groove Width (mm) | 7.90 |
| Toolholder Style | A4-Square shank |
| Tool Material | Steel |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | 8 |
| Insert Compatibility | A4-seat size: 8 |
| Shank Height (mm) | 25.00 |
| Shank Length (mm) | 104.050 |
| Shank Width/Diameter (mm) | 25.00 |
| Series | A4 |
| Overall Length (mm) | 150.0000 |
| Complete Insert Compatibility | A4-seat size: 8 |
| Insert Seat Size | 8.0 |
| Coolant Through | Yes |
| UNSPSC Code | 23153308 |
| Internal or External | External |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 20.00 |
| Maximum Groove Width (mm) | 8.05 |
| Minimum Groove Width (mm) | 7.90 |
| Toolholder Style | A4-Square shank |
| Tool Material | Steel |
| Insert Holding Method | Clamp |
| Compatible Insert Size Code | 8 |
| Insert Compatibility | A4-seat size: 8 |
| Shank Height (mm) | 25.00 |
| Shank Length (mm) | 104.050 |
| Shank Width/Diameter (mm) | 25.00 |
| Series | A4 |
| Overall Length (mm) | 150.0000 |
| Complete Insert Compatibility | A4-seat size: 8 |
| Insert Seat Size | 8.0 |
| Coolant Through | Yes |
| UNSPSC Code | 23153308 |
| MSC Part # | 67180307 |
| Mfr Part # | 7062386 |
| Country of Origin Country of Origin is subject to change | India |
