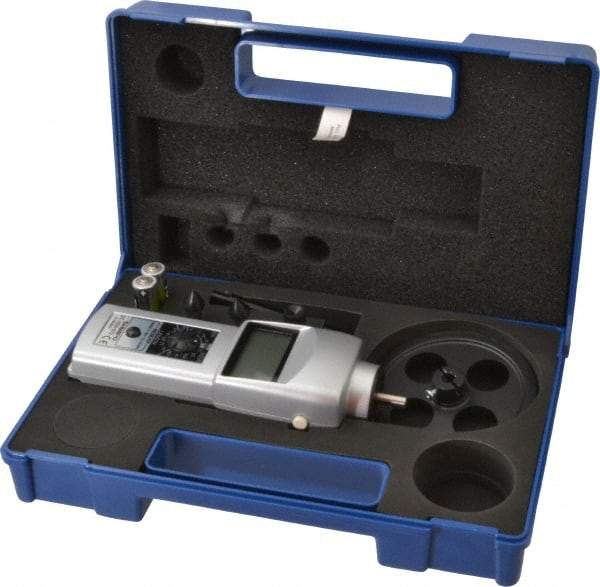

SHIMPO - Accurate up to 0.006 +/- 1% Digit (6 RPM Max) (10,000 to 25,000 RPM), 0.001 RPM Resolution, Contact Tachometer - 7.185 Inch Long x 2.3622 Inch Wide x 1.811 Inch Meter Thick, 0.1 to 25,000 RPM Measurement
Item #: 04131645
Brand: SHIMPO
Model #: DT-105A-S12
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Contact |
| Minimum Measurement (RPM) | 0.10 |
| Maximum Measurement (RPM) | 25000.00 |
| Meter Length (mm) | 182.50 |
| Meter Length (Decimal Inch) | 7.1850 |
| Meter Width (mm) | 60.00 |
| Meter Width (Decimal Inch) | 2.3622 |
| Meter Thickness (mm) | 46.00 |
| Meter Thickness (Decimal Inch) | 1.8110 |
| Accuracy (RPM) | 0.06 (0.10 to 999.9); 0.6 (1000.0 to 9999.9) |
| Accuracy (%) | 0.006 ±1 Digit (6 RPM Max) (10000 to 25000 RPM) |
| Maximum Resolution (RPM) | 0.0010 |
| Display Type | LCD |
| Number of Digits in Display | 5 |
| Battery Type | AA |
| Includes | (2) Cone Adapters; 3-1/2" Extension Shaft; Carrying Case; Funnel Adapter; Master Wheel; NIST Certificate |
