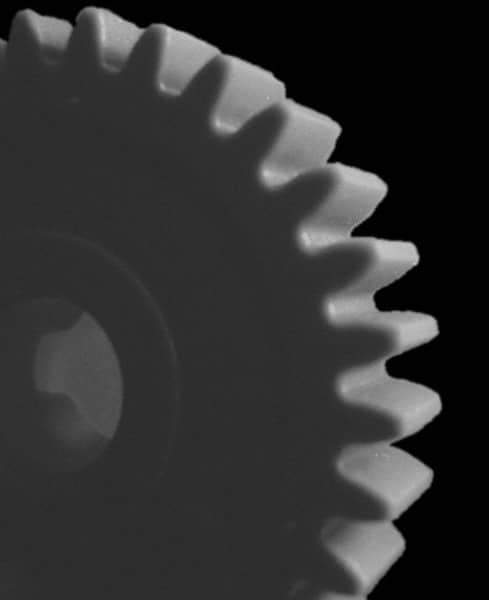

Made in USA - 48 Pitch, 0.479" Pitch Diam, 0.542" OD, 23 Tooth Spur Gear - 1/8" Face Width, 1/8" Bore Diam, 3/8" Hub Diam, 20° Pressure Angle, Acetal
Item #: 04034815
Brand: Made in USA
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Spur Gear |
| Number of Teeth | 23 |
| Hub Diameter (Decimal Inch) | 0.3800 |
| Hub Diameter (Inch) | 3/8 |
| Pitch Diameter (Decimal Inch) | 0.4790 |
| Bore Diameter (Inch) | 1/8 |
| Bore Diameter (Decimal Inch) | 0.1250 |
| Material | Acetal |
| Face Width (Inch) | 1/8 |
| Face Width (Decimal Inch) | 0.1250 |
| Pressure Angle | 20 |
| PSC Code | 3020 |
