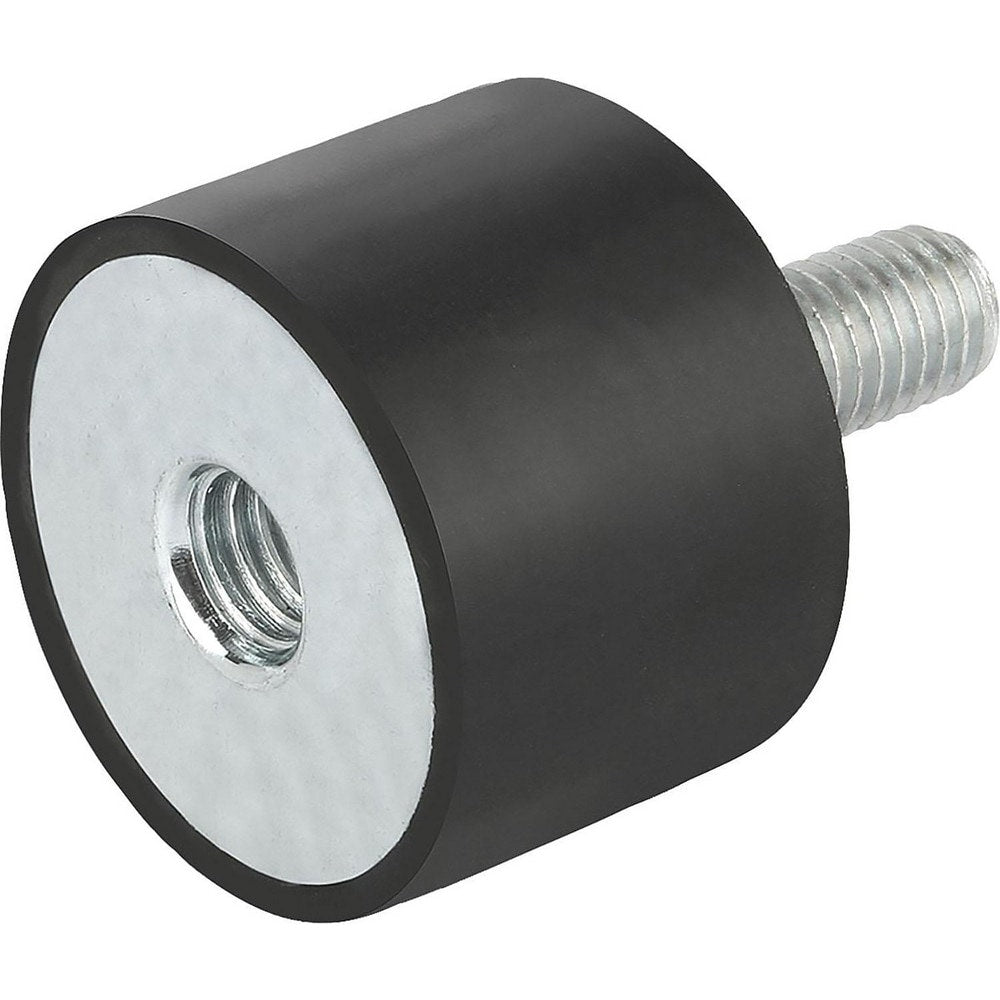

Vibration Isolators; Isolator Type: Plate/Stud; Insert Material: Stainless Steel; Isolator Material: Natural Rubber; Maximum Load Capacity: 92.17; Top Diameter: 25.00; Bottom Diameter: 25; Thread Size: M6; Overall Width: 1
Item #: 60903077
Brand: KIPP
Model #: K0568.025020551
Product Specifications
| Isolator Type | Plate/Stud |
| Insert Material | Stainless Steel |
| Isolator Material | Natural Rubber |
| Maximum Load Capacity | 92.17 |
| Top Diameter | 25.00 |
| Bottom Diameter | 25 |
| Thread Size | M6 |
| Overall Width | 1 |
| Overall Diameter | 0.984 in |
| Thread Length (Decimal Inch) | 0.7087 |
| Mount Type | Threaded Stud |
| Shape | Round |
| Thread Depth | 0.2362 |
| Thread Pitch | 1.00 mm |
| Thread Standard | Metric |
| Height (Decimal Inch) | 1.496 in |
| UNSPSC Code | 23153100 |
| Isolator Type | Plate/Stud |
| Insert Material | Stainless Steel |
| Isolator Material | Natural Rubber |
| Maximum Load Capacity | 92.17 |
| Top Diameter | 25.00 |
| Bottom Diameter | 25 |
| Thread Size | M6 |
| Overall Width | 1 |
| Overall Diameter | 0.984 in |
| Thread Length (Decimal Inch) | 0.7087 |
| Mount Type | Threaded Stud |
| Shape | Round |
| Thread Depth | 0.2362 |
| Thread Pitch | 1.00 mm |
| Thread Standard | Metric |
| Height (Decimal Inch) | 1.496 in |
| UNSPSC Code | 23153100 |
| MSC Part # | 60903077 |
| Mfr Part # | K0568.025020551 |
| Country of Origin Country of Origin is subject to change | Turkey |
