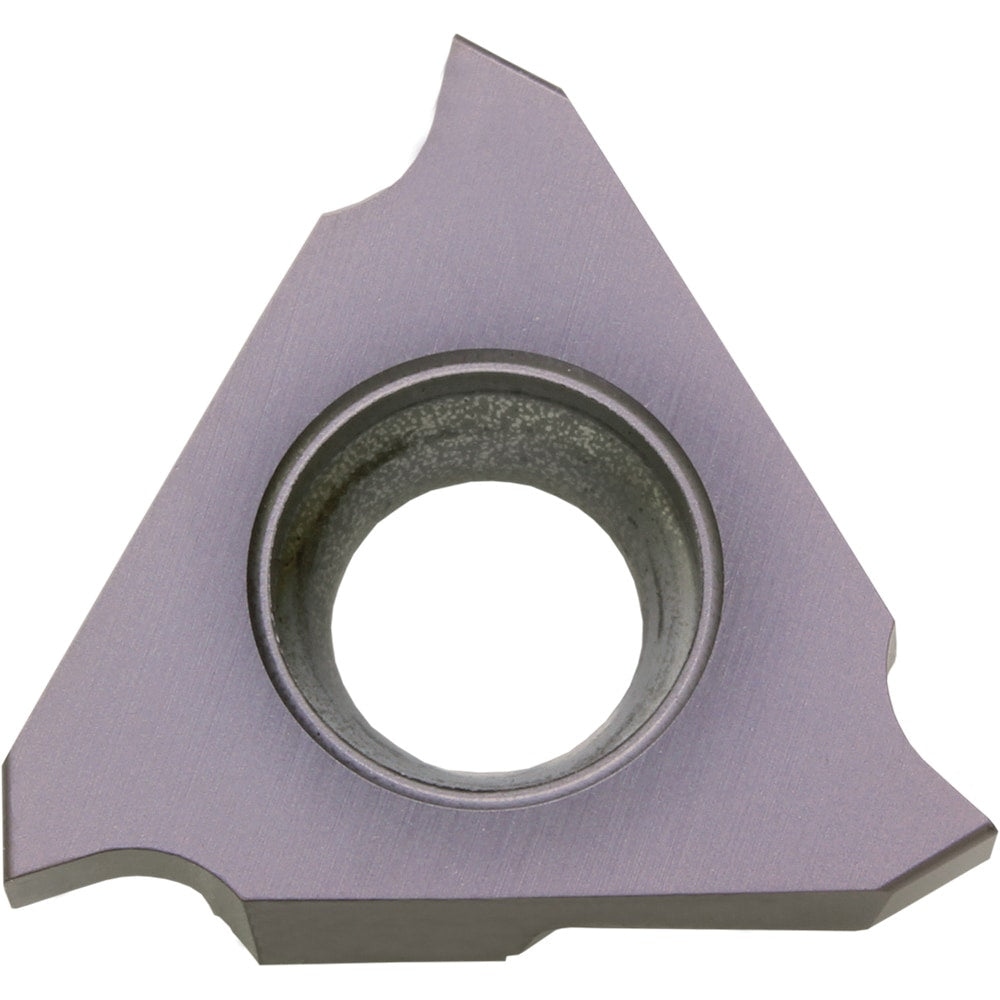

Grooving Insert: GBA 32 , PR2015, Carbide
Item #: 78019775
Brand: Kyocera
Model #: TLY00140
Product Specifications
| Insert Style | GBA |
| Insert Size Code | 32 |
| Cutting Width (mm) | 2.00 |
| Insert Hand | Left Hand |
| Maximum Depth of Cut (mm) | 2.50 |
| Insert Material | Carbide |
| Manufacturer Grade | PR2015 |
| Full Radius | No |
| Corner Radius (mm) | 0.20 |
| Number Of Cutting Edges | 3 |
| Rake | Positive |
| Measurement Type | Metric |
| Face Grooving | No |
| Insert Holding Method | Screw or Clamp |
| Insert Size | 32 |
| Lead Angle | 0 |
| Multi-use Tool | No |
| Coating Process | PVD |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material Code | K |
| Ansi Code | GBA32L200020PR2015 |
| Iso Code | GBA32L200-020 |
| Manufacturers Catalog Number | temp-TLX00070 |
| UNSPSC Code | 23242107 |
| Cut Condition | Interrupted |
| Minimum Groove Width (mm) | 2.00 |
| Maximum Groove Width (mm) | 2.00 |
| Chip Breaker | None |
| Inscribed Circle (mm) | 9.53 |
| Gage Diameter (Decimal Inch) | 0.1732 |
| Coating/Finish | MEGACOAT NANO EX |
| For Use With | KGBAL16-3; KIGBAR3525-16; KGBAL12-3; KGBASR2020K-16; KGBASR2525M-16; KGBAL2525M-16; KGBAL2020K-16; KIGBAR16-3; KGBASR16-3; KGBASR12-3 |
| Country of Origin | Japan |
