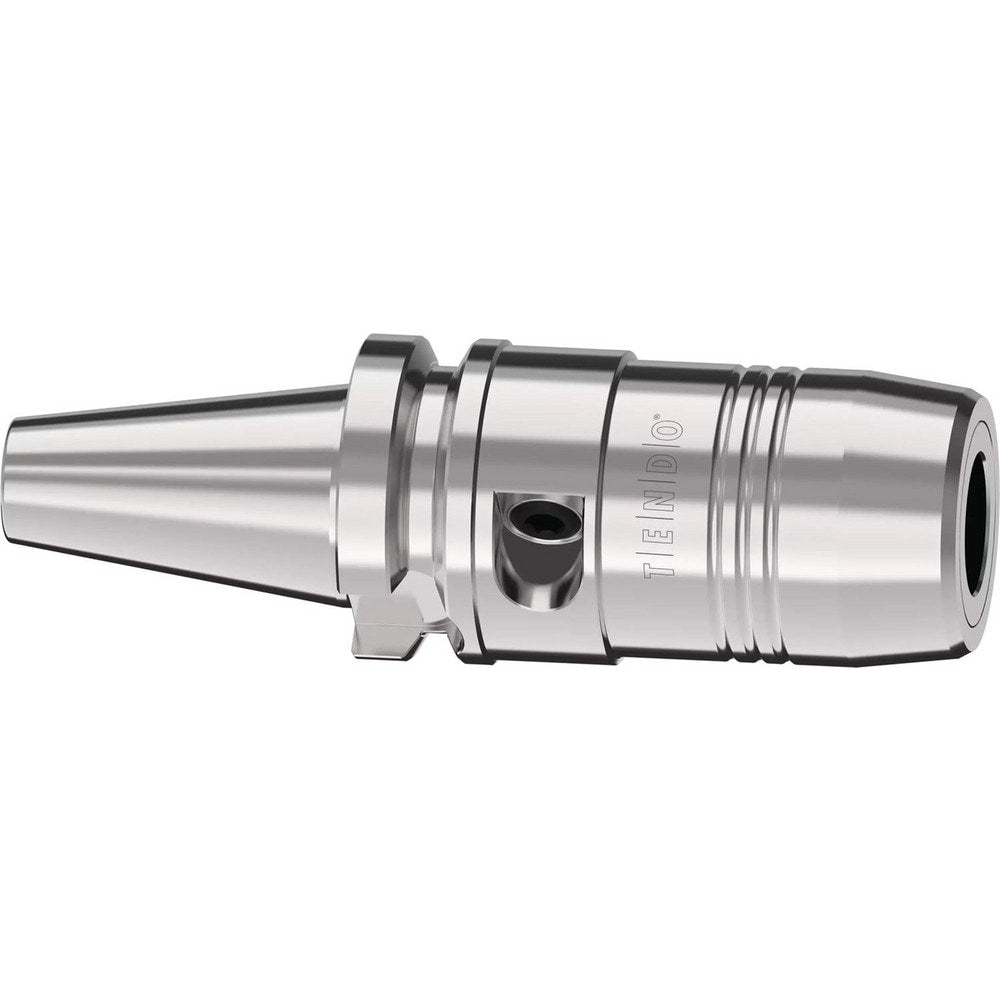

Hydraulic Tool Chuck: BT30 Taper Shank, 16.00 mm Hole
Item #: 76993716
Brand: Schunk
Model #: 1429245
Product Specifications
| Shank Type | Taper |
| Taper Size | BT30 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (mm) | 31.7500 |
| Shank Diameter (Inch) | 1-1/4 |
| Nose Diameter | 1-3/8 |
| Nose Diameter (Mm) ( - 2 Decimals) | 34.70 |
| Projection (mm) | 90.000 |
| Projection | 3-17/32 |
| Clamping Depth (mm) | 49.00 |
| Clamping Depth (Decimal Inch) | 1.9291 |
| Balanced To Rpm | 25000 |
| TIR (Decimal Inch) | 0.000118 |
| TIR (mm) | 0.0030 |
| Through Coolant | Yes |
| Overall Length (Decimal Inch) | 4.071 |
| Overall Length (mm) | 103.4 |
| Hole Diameter (Mm) ( - 0 Decimals) | 16.00 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 1.3661 |
| Projection (Decimal Inch) | 3.54330709 |
| UNSPSC Code | 27112800 |
| Country of Origin | Germany |
