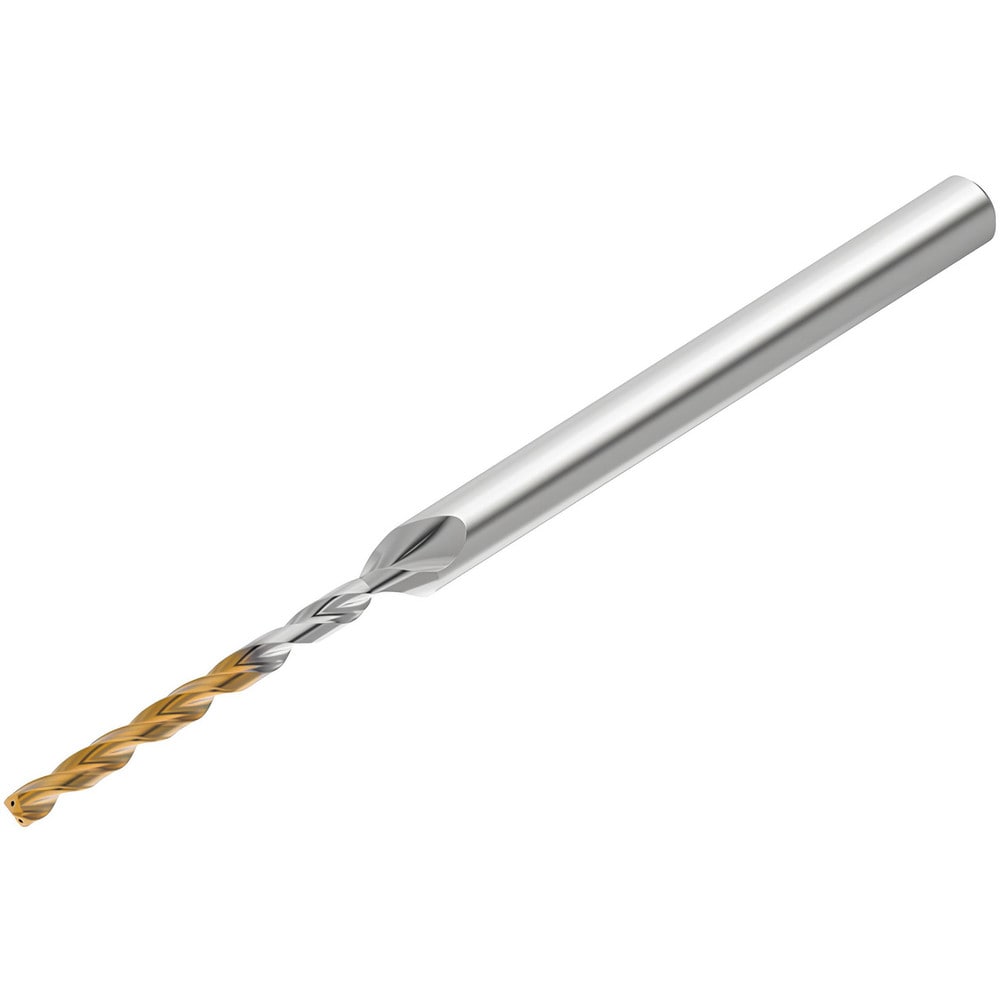

Micro Drill Bit: 1.20 mm Dia, (0.0472"), 139 deg, Solid Carbide
Item #: 67145425
Brand: Kennametal
Model #: 7070687
Product Specifications
| Drill Bit Size (mm) | 1.20 |
| Drill Bit Size (Decimal Inch) | 0.0472 |
| Tool Material | Solid Carbide |
| Flute Length (mm) | 21.50 |
| Coating/Finish | TiAlCrN; TiSiN; TiAlCrSiN |
| Coolant Through | Yes |
| Drill Point Angle | 139 |
| Cutting Direction | Right Hand |
| Maximum Drilling Depth (mm) | 20.10 |
| Number Of Flutes | 2 |
| Series | Kendrill |
| Overall Length (mm) | 60.00 |
| Flute Type | Spiral |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (mm) | 4.00 |
| Shank Length (mm) | 39.00 |
| Flute By Diameter Ratio | 30xD |
| UNSPSC Code | 23241600 |
| Drill Bit Size (mm) | 1.20 |
| Drill Bit Size (Decimal Inch) | 0.0472 |
| Tool Material | Solid Carbide |
| Flute Length (mm) | 21.50 |
| Coating/Finish | TiAlCrN; TiSiN; TiAlCrSiN |
| Coolant Through | Yes |
| Drill Point Angle | 139 |
| Cutting Direction | Right Hand |
| Maximum Drilling Depth (mm) | 20.10 |
| Number Of Flutes | 2 |
| Series | Kendrill |
| Overall Length (mm) | 60.00 |
| Flute Type | Spiral |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (mm) | 4.00 |
| Shank Length (mm) | 39.00 |
| Flute By Diameter Ratio | 30xD |
| UNSPSC Code | 23241600 |
| MSC Part # | 67145425 |
| Mfr Part # | 7070687 |
| Country of Origin Country of Origin is subject to change | Japan |
