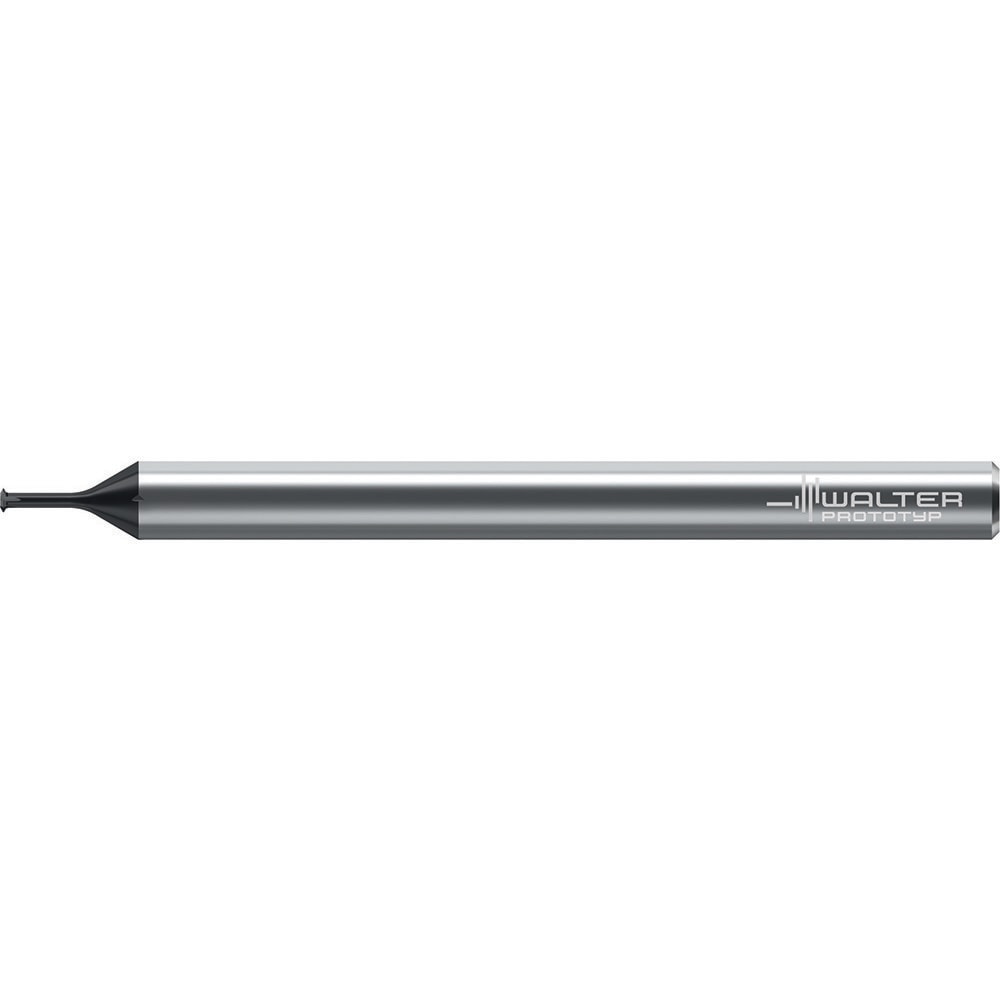

Helical Flute Thread Mill: M1.4x0.3, Internal, 4 Flute, 3.0000 mm Shank Dia, Solid Carbide
Item #: 56212822
Brand: Walter-Prototyp
Model #: 8120096
Product Specifications
| Material | Solid Carbide |
| Thread Size (mm) | M1.4x0.3 |
| Thread Type | Internal |
| Shank Diameter (mm) | 3.0000 |
| Shank Diameter (Decimal Inch) | 0.1181 |
| Cutting Diameter (mm) | 1.05 |
| Shank Type | Cylindrical |
| Cutting Diameter (Decimal Inch) | 0.0413 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.0118 |
| Length of Cut (mm) | 0.3000 |
| Shank Length (Decimal Inch) | 1.1024 |
| Shank Length (mm) | 28.000 |
| Overall Length (mm) | 38.0000 |
| Overall Length (Decimal Inch) | 1.4961 |
| Thread Standard | Metric |
| Flute Direction | Right Hand |
| Series | TC630-M-A0D |
| Number Of Flutes | 4 |
| Coating/Finish | AlTiN |
| Coolant Through | No |
| UNSPSC Code | 23242117 |
| Material | Solid Carbide |
| Thread Size (mm) | M1.4x0.3 |
| Thread Type | Internal |
| Shank Diameter (mm) | 3.0000 |
| Shank Diameter (Decimal Inch) | 0.1181 |
| Cutting Diameter (mm) | 1.05 |
| Shank Type | Cylindrical |
| Cutting Diameter (Decimal Inch) | 0.0413 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.0118 |
| Length of Cut (mm) | 0.3000 |
| Shank Length (Decimal Inch) | 1.1024 |
| Shank Length (mm) | 28.000 |
| Overall Length (mm) | 38.0000 |
| Overall Length (Decimal Inch) | 1.4961 |
| Thread Standard | Metric |
| Flute Direction | Right Hand |
| Series | TC630-M-A0D |
| Number Of Flutes | 4 |
| Coating/Finish | AlTiN |
| Coolant Through | No |
| UNSPSC Code | 23242117 |
| MSC Part # | 56212822 |
| Mfr Part # | 8120096 |
| Country of Origin Country of Origin is subject to change | Germany |
