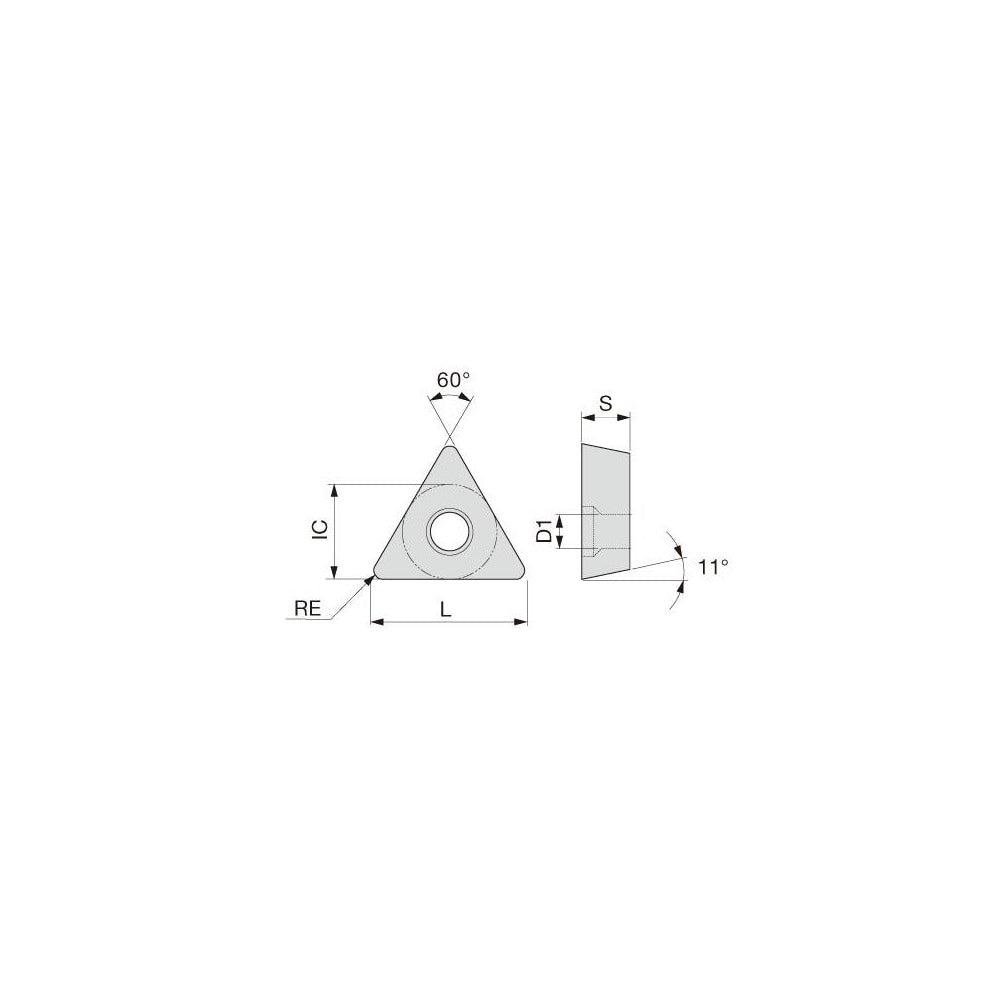

Boring Inserts; Insert Style: TPGT; Insert Size Code: 5.520; Insert Material: Carbide; Material Grade: K10, N10, M10, P10; Manufacturer Grade: TH10; Inscribed Circle (Inch): 11/64
Item #: 20890638
Brand: Tungaloy
Model #: 6862159
Product Specifications
| Insert Style | TPGT |
| Insert Size Code | 5.520 |
| Insert Material | Carbide |
| Material Grade | K10; N10; M10; P10 |
| Manufacturer Grade | TH10 |
| Inscribed Circle (Inch) | 11/64 |
| Inscribed Circle (Decimal Inch) | 0.1719 |
| Hole Diameter (Decimal Inch) | 0.1020 |
| Insert Holding Method | Screw |
| Insert Hand | Left Hand |
| Corner Radius (Decimal Inch) | 0.0040 |
| Relief Angle | 11 |
| Rake | Positive |
| Chipbreaker | W08 |
| Series | TPGTL-W08 |
| Coating Process | Uncoated |
| Included Angle | 60 |
| Insert Shape | Triangle |
| Number Of Cutting Edges | 3 |
| Primary Workpiece Material | Non-Ferrous Metal; Hard Material; Cast Iron; Superalloys & Titanium |
| Primary Workpiece Material Code | S; H; K; N |
| Iso Code | TPGT070101L-W08 TH10 |
| Standards | ISO; ANSI |
| Rake Angle | 15 |
| Manufacturers Catalog Number | 6862159 |
| Length (Decimal Inch - 4 Decimals) | 0.2990 |
| Width (Decimal Inch - 4 Decimals) | 0.299 |
| Coating/Finish | Bright/Uncoated |
| UNSPSC Code | 23242105 |
| Maximum Depth of Cut (Decimal Inch) | 0.0394 |
