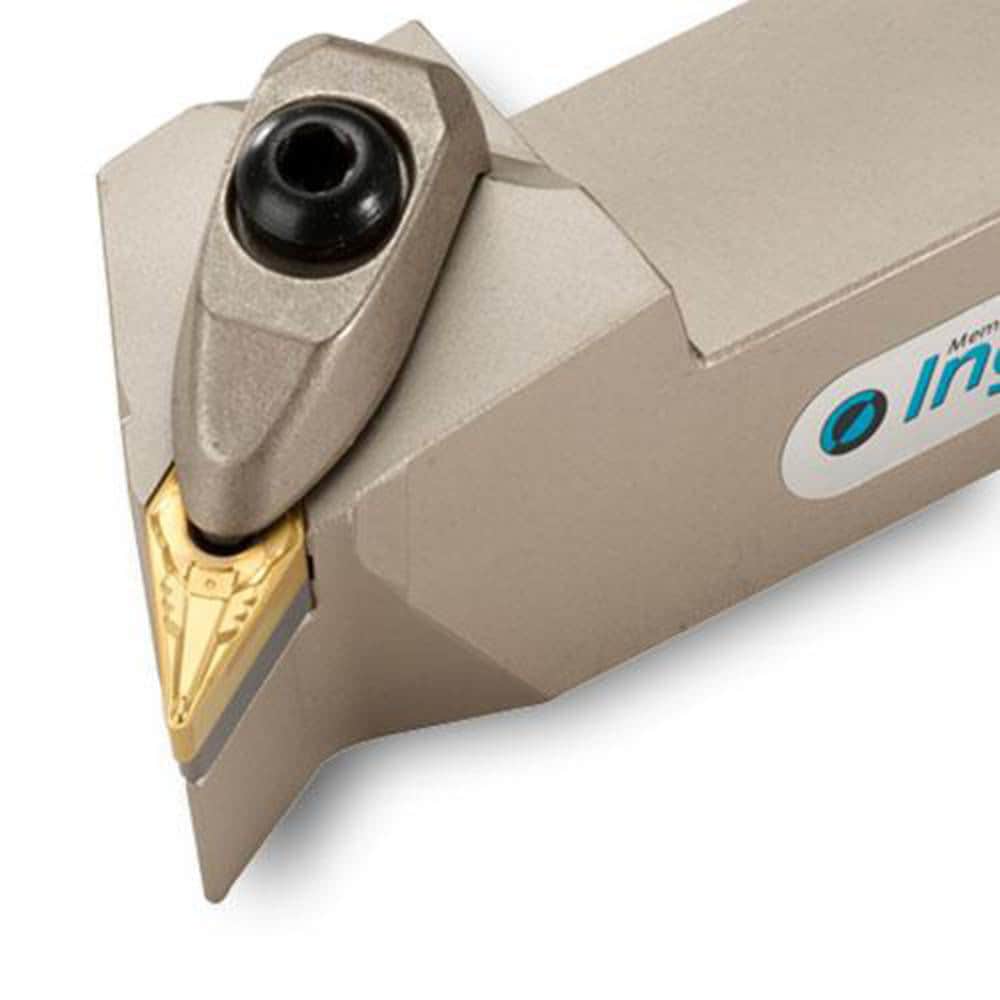

Indexable Turning Toolholder: TVQNR16-3D, 118.0 deg Lead Angle, Clamp
Item #: 90380460
Brand: Ingersoll Cutting Tools
Model #: 6344287
Product Specifications
| Toolholder Style | TVQNR |
| Lead Angle | 118.0 |
| Insert Holding Method | Clamp |
| Shank Width (Inch) | 1 |
| Shank Height (Inch) | 1 |
| Overall Length (Decimal Inch) | 6.0000 |
| Rake | Negative |
| Cutting Direction | Right Hand |
| Compatible Insert Size Code | 1604 |
| Multi-use Tool | No |
| Shank Width (Decimal Inch) | 1.0000 |
| Shank Height (Decimal Inch) | 1.0000 |
| Series | TVQNR; L |
| Overall Length (Inch) | 6 |
| Cutting Tool Application | Turning |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Width (Decimal Inch) | 0.6540 |
| Toolholder Material | Steel |
| UNSPSC Code | 23153308 |
| Insert Thickness (Decimal Inch) | 0.1870 |
