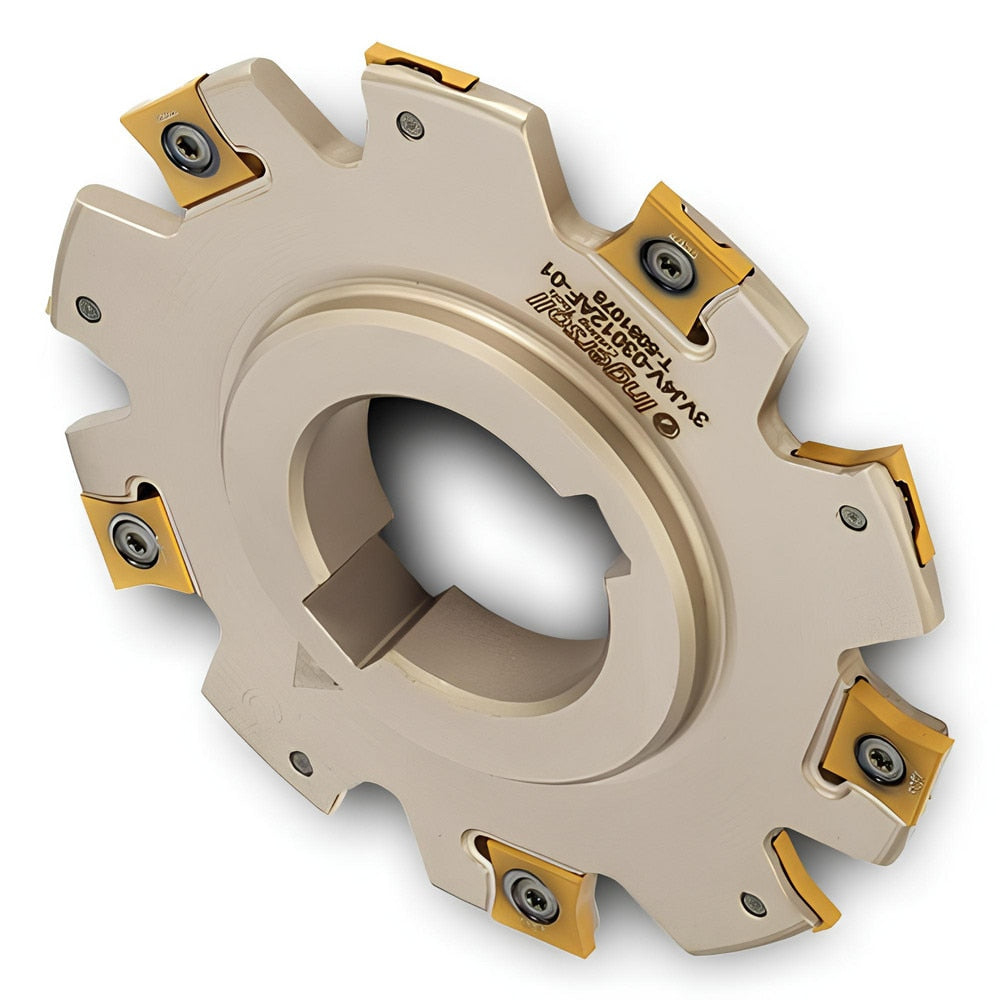

Indexable Slotting Cutter: 3/8" Cutting Width, 8" Cutter Dia, Arbor Connection, 2.5800" Depth of Cut, Neutral
Item #: 90395039
Brand: Ingersoll Cutting Tools
Model #: 2913954
Product Specifications
| Connection Type | Arbor |
| Cutting Width (Inch) | 3/8 |
| Maximum Depth of Cut (Decimal Inch) | 2.5800 |
| Hole Diameter (Inch) | 1-1/2 |
| Cutter Diameter (Decimal Inch) | 8.0000 |
| Cutter Diameter (Inch) | 8 |
| Cutting Direction | Neutral |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 18 |
| Compatible Insert Style | IXH |
| Compatible Insert Size Code | 414 |
| Tooth Type | Staggered |
| Rake | Negative |
| Tool Material | Steel |
| Series | 3VJ4V |
| Toolholder Style | 3VJ4V |
| Hub Diameter (Decimal Inch) | 2.7500 |
| Hub Diameter (Inch) | 2-3/4 |
| Keyway Width (Decimal Inch) | 0.3800 |
| Tool Application | Slotting |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Maximum Cutting Width (Decimal Inch) | 0.3750 |
| UNSPSC Code | 23241629 |
| Maximum Body Diameter (Decimal Inch) | 8.0000 |
| Cutter Body Width (Decimal Inch) | 0.3750 |
| Weldon Flat | No |
| Manufacturers Catalog Number | 3VJ4V-08037AH-01 |
| Number Of Teeth | 9 |
| Coolant Through | No |
| Complete Insert Compatibility | IXH414 |
| Coated | Coated |
