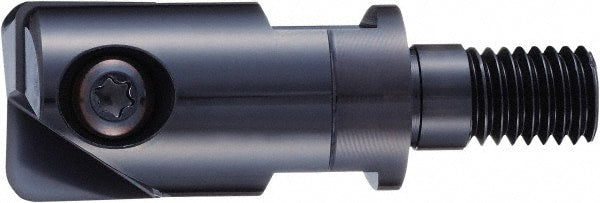

Indexable Square-Shoulder End Mill: PFR-R1000ASF12, 1" Cut Dia, 1.496" Max Depth of Cut, M12 Modular Connection Shank
Item #: 55702682
Brand: OSG
Model #: 52605004
Product Specifications
| Cutting Diameter | 1.0000 in |
| Cutting Diameter | 1 |
| Overall Length (Decimal Inch) | 1.4960 |
| Maximum Depth of Cut (Decimal Inch) | 1.4960 |
| Cutter Style | PFR |
| Shank Type | Modular Connection |
| Insert Holding Method | Screw |
| Tool Material | High-Speed Steel |
| Series | 52605 |
| Lead Angle | 0 |
| Head Length (Decimal Inch) | 1.496 |
| Modular Connection Size | M12 |
| Insert Compatibility | PFR? |
| UNSPSC Code | 27112803 |
| Number Of Flutes | 2 |
| Number Of Cutter Inserts | 2 |
| Coolant Through | Yes |
| Cutting Diameter | 1.0000 in |
| Cutting Diameter | 1 |
| Overall Length (Decimal Inch) | 1.4960 |
| Maximum Depth of Cut (Decimal Inch) | 1.4960 |
| Cutter Style | PFR |
| Shank Type | Modular Connection |
| Insert Holding Method | Screw |
| Tool Material | High-Speed Steel |
| Series | 52605 |
| Lead Angle | 0 |
| Head Length (Decimal Inch) | 1.496 |
| Modular Connection Size | M12 |
| Insert Compatibility | PFR? |
| UNSPSC Code | 27112803 |
| Number Of Flutes | 2 |
| Number Of Cutter Inserts | 2 |
| Coolant Through | Yes |
| MSC Part # | 55702682 |
| Mfr Part # | 52605004 |
| Country of Origin Country of Origin is subject to change | Japan |
