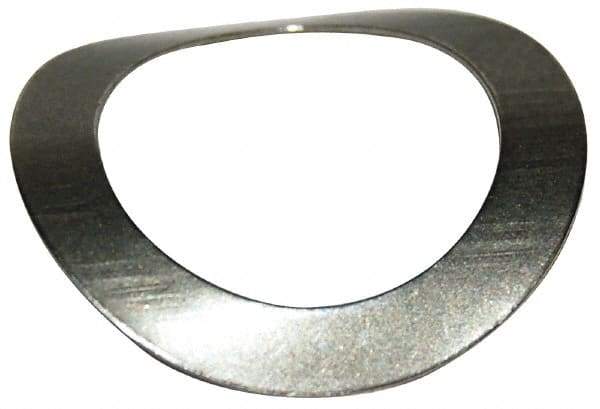

Gardner Spring - 1/2" Bolt, 17/32" ID, Grade 301 Stainless Steel, Curved Disc Spring - 0.795" OD, 0.098" High, 0.017" Thick
Item #: 03714920
Brand: Gardner Spring
Model #: MU500-0170-S
Exact Tooling IR#: 04
Features and Benefits
Curved disc springs create a spring-like action and can support heavy loads. They are slightly bent along the outside diameter.
| Product Specifications | |
|---|---|
| Type | Curved Disc Spring |
| Bolt Size (Inch) | 1/2 |
| System of Measurement | Inch |
| Inside Diameter (Decimal Inch) | 0.5310 |
| Material | Stainless Steel |
| Material Grade | 301 |
| Outside Diameter (Decimal Inch) | 0.7950 |
| Thickness (Decimal Inch) | 0.0170 |
| Overall Height (Decimal Inch) | 0.0980 |
| Deflection (Decimal Inch) | 0.0324 |
| Deflection to Flat (Decimal Inch) | 0.0320 |
| Load at Deflection (Lb.) | 8.05 |
